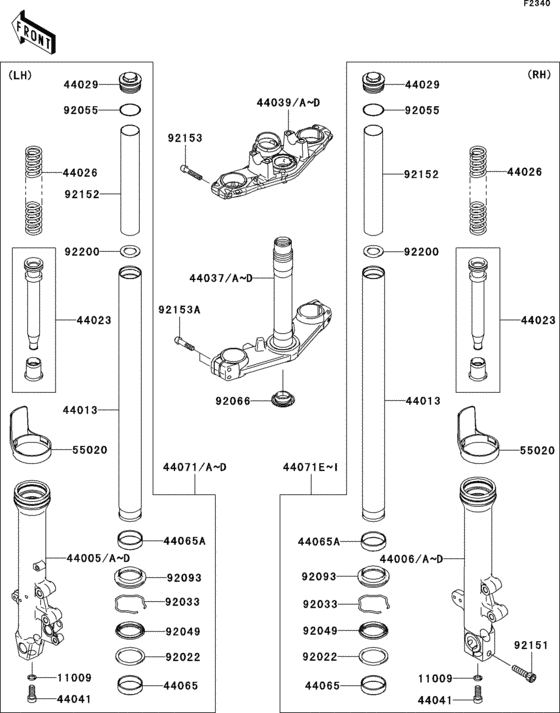

Front fork(1/2) Diagram Kawasaki EX650 Ninja 650 ABS
- Year
- 2006
- Model code
- EX650B6F
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- EX650 ER-6F/ Ninja 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
44045057 GASKET,FORK CYLINDER |
44045057 |
from US $3.33 |
||
|
44005C
|
44005C
44005-0048-793 Pipe-left fork outer,m.bronze |
44005-0048-793 |
US $270.60 |
||
|
44005D
|
44005D
44005-0048-796 Pipe-left fork outer,p.red |
44005-0048-796 |
US $270.60 |
||
|
44006C
|
44006C
44006-0047-793 Pipe-right fork outer,m.bronze |
44006-0047-793 |
US $270.60 |
||
|
44006D
|
44006D
44006-0047-796 Pipe-right fork outer,p.red |
44006-0047-796 |
US $270.60 |
||
|
44013
|
44013
44013-0063 PIPE-FORK INNER |
44013-0063 |
from US $524.05 |
||
|
44023
|
44023
44023-0044 CYLINDER-SET-FORK |
44023-0044 |
from US $114.53 |
||
|
44026
|
44026
44026-0090 SPRING-FRONT FORK |
44026-0090 |
from US $54.64 |
||
|
44029
|
44029
44029-0005 SEAT-FORK SPRING |
44029-0005 |
from US $29.47 |
||
|
44037C
|
44037C
44037-0050-793 ホルダ(フオ-クアンダ)，ブロンズ |
44037-0050-793 |
US $374.01 |
||
|
44037D
|
44037D
44037-0050-796 HOLDER-FORK UNDER,P.R |
44037-0050-796 |
from US $374.01 |
||
|
44039C
|
44039C
44039-0033-793 ホルダ(フオ-クアツパ)，ブロンズ |
44039-0033-793 |
US $274.69 |
||
|
44039D
|
44039D
44039-0033-796 HOLDER-FORK UPPER,P.R |
44039-0033-796 |
from US $274.69 |
||
|
44041
|
44041
44041040 BOLT-FORK CYLINDER |
44041040 |
from US $4.44 |
||
|
44065
|
44065
44065-0014 BUSHING-FRONT FORK,IN |
44065-0014 |
from US $19.48 |
||
|
44065A
|
44065A
44065-1115 BUSHING-FRONT FORK |
44065-1115 |
from US $19.48 |
||
|
44071C
|
44071C
44071-0361-793 Damper-assy,fork,lh,m.bro |
44071-0361-793 |
US $701.71 |
||
|
44071D
|
44071D
44071-0361-796 Damper-assy,fork,lh,p.red |
44071-0361-796 |
US $701.71 |
||
|
44071H
|
44071H
44071-0362-793 Damper-assy,fork,rh,m.bro |
44071-0362-793 |
US $701.71 |
||
|
44071I
|
44071I
44071-0362-796 Damper-assy,fork,rh,p.red |
44071-0362-796 |
US $701.71 |
||
|
55020
|
55020
55020-1691 GUARD,FORK |
55020-1691 |
from US $6.49 |
||
|
92022
|
92022
92022-1298 WASHER,FORK OUTER TUB |
92022-1298 |
from US $6.57 |
||
|
92033
|
92033
92033-1036 CIRCLIP |
92033-1036 |
from US $3.80 |
||
|
92049
|
92049
92049-0073 SEAL-OIL |
92049-0073 |
from US $15.05 |
||
|
92055
|
92055
670B3032 0 RING,32MM |
670B3032 |
from US $1.84 |
||
|
92066
|
92066
92066-0032 PLUG |
92066-0032 |
from US $7.13 |
||
|
92093
|
92093
92093-1472 SEAL,FORK OUTER TUBE |
92093-1472 |
from US $15.36 |
||
|
92151
|
92151
92151-1357 BOLT,SOCKET,10X40 |
92151-1357 |
from US $2.53 |
||
|
92152
|
92152
92152-0410 COLLAR,FORK |
92152-0410 |
from US $8.71 |
||
|
92153
|
92153
92153-0506 BOLT,SOCKET,8X40 |
92153-0506 |
from US $4.44 |
||
|
92153A
|
92153A
92153-1472 BOLT,SOCKET,8X35 |
92153-1472 |
from US $3.80 |
||
|
92200
|
92200
92200-1302 WASHER |
92200-1302 |
from US $3.01 |
