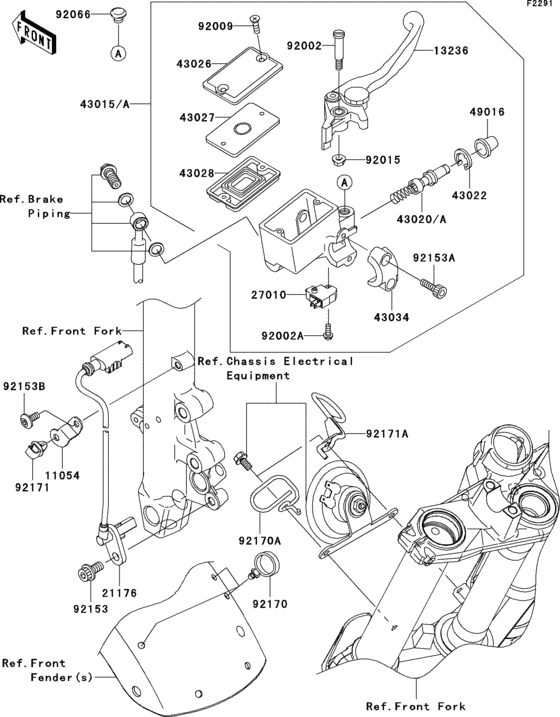

Front master cylinder Diagram Kawasaki EX650 Ninja 650 ABS
- Year
- 2008
- Model code
- EX650B8F
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- EX650 ER-6F/ Ninja 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11054
|
11054
11054-0405 Bracket,speed sensor |
11054-0405 |
US $2.61 |
||
|
13236
|
13236
13236-1337 LEVER-COMP,FRONT BRAKE |
13236-1337 |
from US $47.87 |
||
|
21176
|
21176
21176-0040 SENSOR,SPEED,FRスピード，FR |
21176-0040 |
from US $113.40 |
||
|
27010
|
27010
27010-0025 SWITCH,BRAKE |
27010-0025 |
from US $23.19 |
||
|
43015A
|
43015A
43015-0090 シリンダアツシ(マスタ)，fr |
43015-0090 |
US $310.73 |
||
|
43020
|
43020
43020-0006 ピストンコンプ(ブレ-キ) |
43020-0006 |
US $37.25 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPER |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1076 CAP-BRAKE |
43026-1076 |
from US $28.57 |
||
|
43027
|
43027
43027-1055 PLATE-DIAPHRAGM |
43027-1055 |
from US $7.08 |
||
|
43028
|
43028
43028-1058 DIAPHRAGM,MASTER CYLI |
43028-1058 |
from US $16.16 |
||
|
43034
|
43034
43034-1053 HOLDER-BRAKE,MASTER C |
43034-1053 |
from US $24.24 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDER |
49016-1044 |
from US $10.61 |
||
|
92002
|
92002
92002-1322 BOLT,LEVER SET |
92002-1322 |
from US $7.13 |
||
|
92002A
|
92002A
92002-1323 Bolt |
92002-1323 |
from US $2.53 |
||
|
92009
|
92009
92009-1458 SCREW,4MM |
92009-1458 |
from US $3.02 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92066
|
92066
92066-1077 PLUG,9.5X8 |
92066-1077 |
from US $3.01 |
||
|
92153
|
92153
92153-0327 BOLT,SOCKET,8X16 |
92153-0327 |
from US $3.48 |
||
|
92153A
|
92153A
92153-0417 BOLT,SOCKET,6X20 |
92153-0417 |
from US $3.80 |
||
|
92153B
|
92153B
92153-1446 BOLT,SOCKET,6X14 |
92153-1446 |
from US $0.95 |
||
|
92170
|
92170
92170-1067 Clamp,Hose |
92170-1067 |
from US $5.07 |
||
|
92170A
|
92170A
92170-1820 Clamp, Cable |
92170-1820 |
US $9.66 |
||
|
92171
|
92171
92171-0640 Clamp |
92171-0640 |
from US $2.32 |
||
|
92171A
|
92171A
92171-0706 Clamp, Cable |
92171-0706 |
from US $17.74 |
