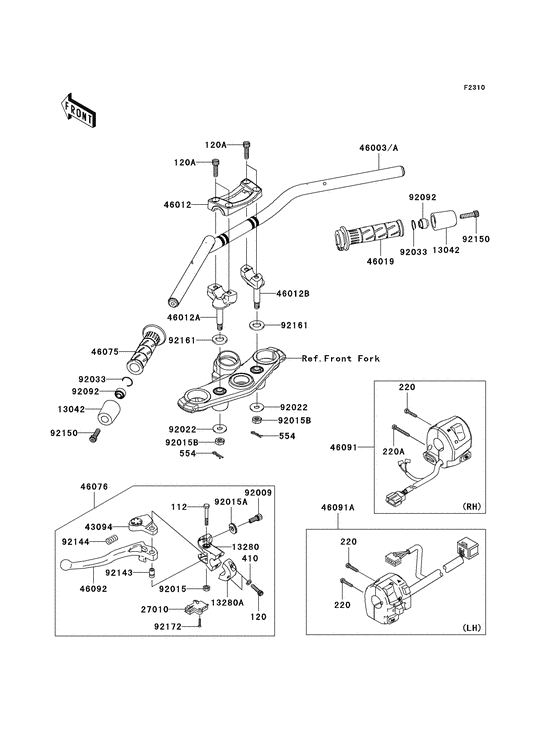

Handlebar Diagram Kawasaki EX650 Ninja 650
- Year
- 2009
- Model code
- EX650C9F
- Sales region
- USA
- Engine Capacity
- 650
- Model
- EX650 ER-6F/ Ninja 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112AB0645 BOLT-UPSET,6X45Bolt-upset,6x45; |
112AB0645 |
from US $1.90 |
||
|
120
|
120
120CB0625 BOLT-SOCKETBolt-socket,6x25; |
120CB0625 |
from US $1.27 |
||
|
120A
|
120A
120CC0830 BOLT-SOCKET,8X30Bolt-socket,8x30; |
120CC0830 |
from US $1.90 |
||
|
220
|
220
220AB0525 SCREW-PAN-CROSScrew-pan-cros,5x25; |
220AB0525 |
from US $0.95 |
||
|
220A
|
220A
220AB0540 SCREW-PAN-CROSS,5X40Screw-pan-cross,5x40; |
220AB0540 |
from US $0.95 |
||
|
410
|
410
410AB0600 WASHER-PLAIN-SMALL,6MWasher-plain-small,6mm; |
410AB0600 |
from US $0.79 |
||
|
554
|
554
554DB0800 PIN-SNAP |
554DB0800 |
from US $0.63 |
||
|
13042
|
13042
13042-1006 WEIGHT,HANDLEWeight,handle; |
13042-1006 |
from US $34.26 |
||
| replacement | |||||
|
13042
|
13042
13042-5002 WEIGHT,HANDLEWeight,handle; |
13042-5002 |
from US $31.72 |
||
|
13280
|
13280
13280-0306 HOLDER,CLUTCH LEVERHolder,clutch lever; |
13280-0306 |
from US $33.36 |
||
|
13280A
|
13280A
13280-0319 HOLDER,CLUTCH LEVERHolder,clutch lever; |
13280-0319 |
from US $22.44 |
||
|
27010
|
27010
27010-1094 SWITCH,CLUTCHSwitch,clutch,black; |
27010-1094 |
from US $21.07 |
||
|
43094
|
43094
43094-1053 ADJUSTER,CLUTCH LEVERAdjuster,clutch lever; |
43094-1053 |
from US $24.38 |
||
|
46003
|
46003
46003-0152-26M HANDLE,F.M.GRAYHandle,f.m.gray; |
46003-0152-26M |
from US $102.33 |
||
|
46003A
|
46003A
46003-0152-458 HANDLE,P.SILVERHandle,p.silver; |
46003-0152-458 |
from US $135.29 |
||
|
46012
|
46012
46012-0059 HOLDER-HANDLE,UPPHolder-handle,upp; |
46012-0059 |
from US $46.53 |
||
|
46012A
|
46012A
46012-0060 HOLDER-HANDLE,LWR,LHHolder-handle,lwr,lh; |
46012-0060 |
from US $22.44 |
||
|
46012B
|
46012B
46012-0061 HOLDER-HANDLE,LWR,RHHolder-handle,lwr,rh; |
46012-0061 |
from US $22.44 |
||
|
46019
|
46019
46019-0001 GRIP-ASSY,THROTTLEGrip-assy,throttle; |
46019-0001 |
from US $30.75 |
||
|
46075
|
46075
46075-1144 GRIP,LHGrip,lh; |
46075-1144 |
from US $18.40 |
||
|
46076
|
46076
46076-0053 LEVER-ASSY-GRIP,CLUTCLever-assy-grip,clutch; |
46076-0053 |
from US $122.07 |
||
|
46091
|
46091
46091-0159 HOUSING-ASSY-CONTROL,Housing-assy-control,rh; |
46091-0159 |
from US $105.02 |
||
| replacement | |||||
|
46091
|
46091
46091-0482 Housing-Assy-Control,Housing-assy-control,rh; |
46091-0482 |
US $181.44 |
||
|
46091A
|
46091A
46091-0161 HOUSING-ASSY-CONTROL,Housing-assy-control,lh; |
46091-0161 |
from US $158.44 |
||
|
46092
|
46092
46092-0031 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-0031 |
from US $24.83 |
||
|
92009
|
92009
92009-1134 SCREW,CABLE ADJUST,8Screw,cable adjust,8mm,black; |
92009-1134 |
from US $9.19 |
||
|
92015
|
92015
92015-1191
NUT,LOCK,6MM
Nut,lock,6mm,black; |
92015-1191 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0006 NUT,LOCK,6MMNut,lock,6mm,black; |
92210-0006 |
from US $1.27 |
||
|
92015A
|
92015A
92015-1197 NUT,CABLE ADJUST LOCKNut,cable adjust lock,8mm,blk; |
92015-1197 |
from US $6.34 |
||
|
92015B
|
92015B
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
US $7.74 |
||
| replacement | |||||
|
92015B
|
92015B
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92022
|
92022
92022-1088 WASHER,10.2X28X2Washer,10.2x28x2; |
92022-1088 |
from US $2.85 |
||
|
92033
|
92033
92033-1102 RING-SNAP,OD=22.2Ring-snap,od=22.2; |
92033-1102 |
US $2.53 |
||
| replacements | |||||
|
92033
|
92033
13042-5001 WEIGHT,HANDLERing-snap,od=22.2; |
13042-5001 |
from US $31.72 |
||
|
92033
|
92033
13042-5002 WEIGHT,HANDLERing-snap,od=22.2; |
13042-5002 |
from US $31.72 |
||
|
92033
|
92033
13042-5003 WEIGHT,HANDLERing-snap,od=22.2; |
13042-5003 |
from US $32.34 |
||
|
92092
|
92092
92092-1018 BUSHING-RUBBER,HANDLEBushing-rubber,handle; |
92092-1018 |
from US $9.35 |
||
| replacements | |||||
|
92092
|
92092
13042-5002 WEIGHT,HANDLEBushing-rubber,handle; |
13042-5002 |
from US $31.72 |
||
|
92092
|
92092
13042-5003 WEIGHT,HANDLEBushing-rubber,handle; |
13042-5003 |
from US $32.34 |
||
|
92143
|
92143
92143-1379 COLLAR |
92143-1379 |
from US $6.34 |
||
|
92144
|
92144
92144-1467 SPRING |
92144-1467 |
from US $3.96 |
||
|
92150
|
92150
92150-1604 BOLT,SOCKET,8X30Bolt,socket,8x30; |
92150-1604 |
from US $3.48 |
||
|
92161
|
92161
92161-0037 DAMPER |
92161-0037 |
from US $1.11 |
||
|
92172
|
92172
92172-0183 SCREW,3X16Screw,3x16; |
92172-0183 |
from US $0.95 |
||
