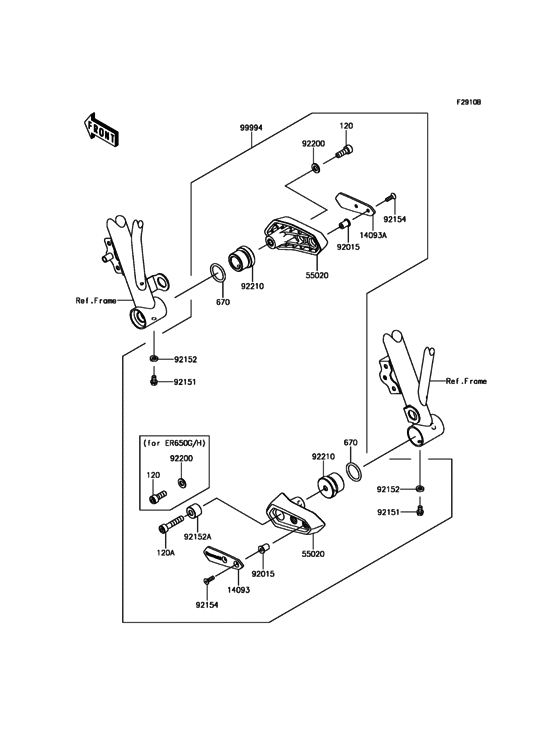

Accessory(Frame Slider) Diagram Kawasaki EX650 Ninja 650 ABS KRT Edition
- Year
- 2017
- Model code
- EX650KHFA
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- EX650 ER-6F/ Ninja 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0822 BOLT-SOCKET,8X22 |
120CA0822 |
from US $1.27 |
||
|
120A
|
120A
120CA0840 BOLT-SOCKET,8X40 |
120CA0840 |
from US $1.27 |
||
|
670
|
670
670B3026 O RING,26MM |
670B3026 |
from US $3.01 |
||
|
14093
|
14093
14093-0350 COVER,SLIDER,LH |
14093-0350 |
from US $69.56 |
||
|
14093A
|
14093A
14093-0351 COVER,SLIDER,RH |
14093-0351 |
from US $69.56 |
||
|
55020
|
55020
55020-1997 GUARD |
55020-1997 |
from US $150.65 |
||
|
92015
|
92015
92015-1757 NUT,5MM |
92015-1757 |
from US $4.25 |
||
|
92151
|
92151
92151-1277 BOLT,6X10 |
92151-1277 |
from US $1.11 |
||
|
92152
|
92152
92152-2236 COLLAR,6.3X12 |
92152-2236 |
from US $1.90 |
||
|
92152A
|
92152A
92152-2237 COLLAR,8.3X20X15 |
92152-2237 |
from US $4.75 |
||
|
92154
|
92154
92154-1014 BOLT,SOCKET,5X16ソケツト，5X16 |
92154-1014 |
from US $0.32 |
||
|
92200
|
92200
92200-0807 WASHER,8.4X16X1.6 |
92200-0807 |
from US $2.22 |
||
|
92210
|
92210
92210-1505 NUT |
92210-1505 |
from US $13.15 |
||
|
99994
|
99994
99994-0797 FRAME SLIDER SET |
99994-0797 |
from US $393.72 |
