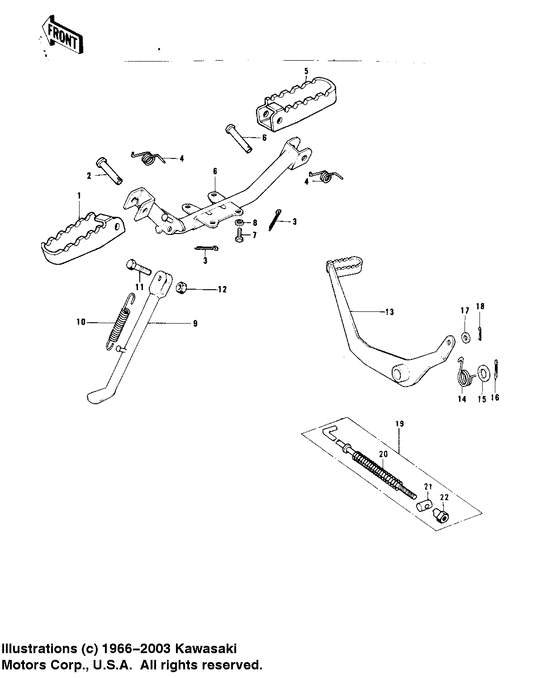

Footrests/stand/brake pedal Diagram Kawasaki KD80
- Year
- 1975
- Model code
- KD80-A1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KD80-A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34028-024
BAR,L.H FOOTREST
Bar,l.h footrest; |
34028-024 |
— | ||
|
2
|
2
92043-080 PIN-FOOTREST BAR FITPin-footrest bar fit; |
92043-080 |
from US $3.33 |
||
|
3
|
3
550D2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550D2515 |
US $0.79 |
||
| replacement | |||||
|
3
|
3
550AA2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550AA2515 |
from US $0.78 |
||
|
4
|
4
92083-027 SPRING,FOOTRESTBARSpring,footrestbar; |
92083-027 |
US $14.76 |
||
|
5
|
5
34028-023
BAR,R.H FOOTREST
Bar,r.h footrest; |
34028-023 |
— | ||
|
6
|
6
34002-047
BAR,FOOTREST
Bar,footrest; |
34002-047 |
— | ||
|
7
|
7
115G0818 BOLT-SMALL-UPSET,8X18Bolt-small-upset,8x18; |
115G0818 |
US $1.58 |
||
| replacement | |||||
|
7
|
7
115BA0818 BOLT-SMALL-UPSET,8X18Bolt-small-upset,8x18; |
115BA0818 |
from US $0.94 |
||
|
8
|
8
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
8
|
8
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
9
|
9
34024-1013
STAND-SIDE
|
34024-1013 |
— | ||
|
10
|
10
34023-005 SPRING MAIN STAND |
34023-005 |
from US $8.31 |
||
|
11
|
11
113G1025
BOLT-UPSET
Bolt,hex head,10x25; |
113G1025 |
— | ||
| replacement | |||||
|
11
|
11
112C1025
BOLT-UPSET
Bolt,hex head,10x25; |
112C1025 |
— | ||
|
12
|
12
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
12
|
12
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
13
|
13
43001-062
PEDAL,BRAKE
Pedal,brake; |
43001-062 |
— | ||
|
14
|
14
43005-020
SPRING-BRAKE PEDAL
|
43005-020 |
— | ||
|
15
|
15
92022-085 WASHER BRAKE PEDALWasher brake pedal; |
92022-085 |
from US $3 |
||
|
16
|
16
550D3030 PIN COTTER 3.0X30Pin cotter 3.0x30; |
550D3030 |
US $1.27 |
||
| replacement | |||||
|
16
|
16
550AA3030 PIN-COTTER,3.0X30Pin cotter 3.0x30; |
550AA3030 |
from US $0.95 |
||
|
17
|
17
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
17
|
17
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
18
|
18
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
18
|
18
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
19
|
19
43010-5004
ROD ASSY,REAR BRAKE
Rod assy,rear brake; |
43010-5004 |
— | ||
|
20
|
20
43012001 SPRING,BRAKE RODSpring,brake rod; |
43012001 |
from US $3.33 |
||
|
21
|
21
92043-039
PIN,BRAKE ROD
Pin brake; |
92043-039 |
— | ||
| replacement | |||||
|
21
|
21
92043-0147 PIN,BRAKE RODPin brake; |
92043-0147 |
from US $3.17 |
||
|
22
|
22
92015-042 NUT-BRAKE ROD ADJUSTNut-brake rod adjust; |
92015-042 |
from US $3.48 |
||
