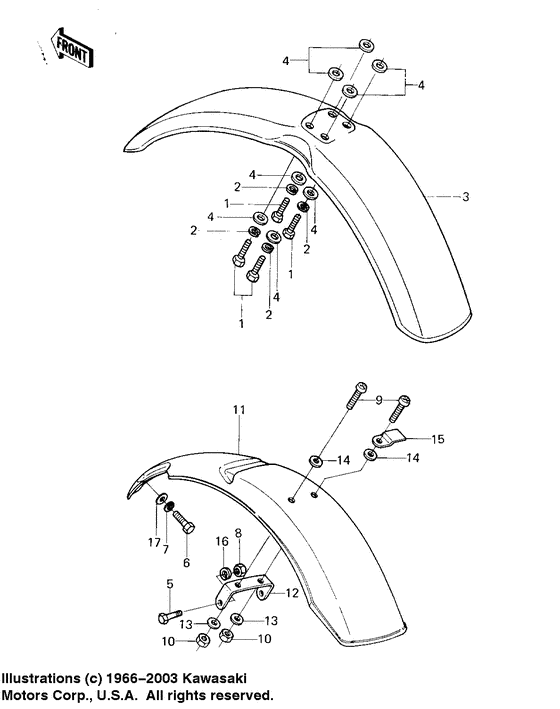

Fenders Diagram Kawasaki KD80
- Year
- 1980
- Model code
- KD80-M1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KD80-M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
1
|
1
112BA0618 BOLT-UPSET |
112BA0618 |
from US $1.09 |
||
|
2
|
2
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
2
|
2
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.42 |
||
|
3
|
3
35004-1043-6H FENDER-FR,C.ORANGEFender-fr,c.orange; Kd80-m1, kd80-m2, kd80-m2 |
35004-1043-6H |
US $48.86 |
||
|
4
|
4
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
4
|
4
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.56 |
||
|
5
|
5
113B1228 BOLT-SMALL-FINE |
113B1228 |
US $4.45 |
||
|
6
|
6
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
6
|
6
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.67 |
||
|
6
|
6
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.06 |
||
|
7
|
7
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
7
|
7
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.42 |
||
|
8
|
8
315B1200 NUT-HEX-FINENut-hex-fine,12mm; |
315B1200 |
US $0.65 |
||
| replacement | |||||
|
8
|
8
315AA1200 NUT-HEX-FINENut-hex-fine,12mm; |
315AA1200 |
from US $1.06 |
||
|
9
|
9
220B0616
SCREW-PAN-CROS,6X16
Screw pan head 6x16; |
220B0616 |
— | ||
| replacement | |||||
|
9
|
9
220AA0616 SCREW-PAN-CROS,6X16Screw pan head 6x16; |
220AA0616 |
from US $0.91 |
||
|
10
|
10
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
10
|
10
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.73 |
||
|
11
|
11
35022-1044-6H FENDER-RR,C.ORANGEFender-rr,c.orange; Kd80-m2, kd80-m2 |
35022-1044-6H |
US $53.18 |
||
|
12
|
12
35025-025 BRACKET,REAR FENDERBracket,rear fender; |
35025-025 |
US $10.29 |
||
|
13
|
13
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
13
|
13
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.77 |
||
|
14
|
14
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
14
|
14
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.56 |
||
|
15
|
15
92037-020
CLAMP CABLE
|
92037-020 |
— | ||
|
16
|
16
461F1200 WASHER-SPRING,12MMWasher spring 12mm; |
461F1200 |
US $1.26 |
||
| replacement | |||||
|
16
|
16
461DA1200 WASHER-SPRING,12MMWasher spring 12mm; |
461DA1200 |
from US $0.84 |
||
|
17
|
17
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
17
|
17
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.56 |
||
