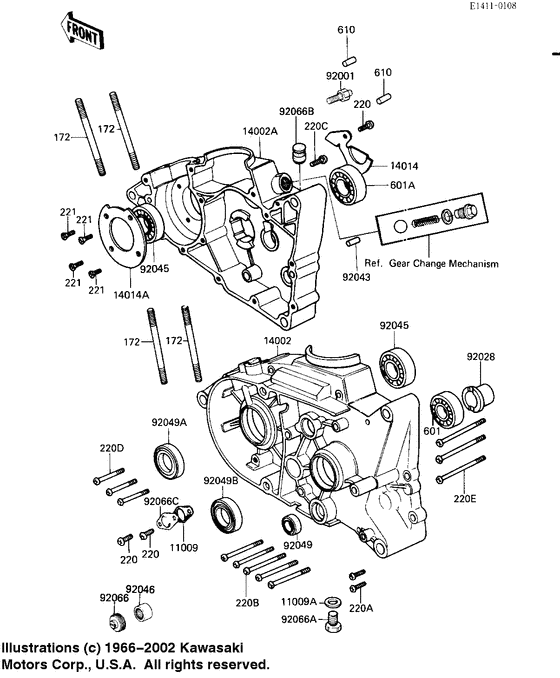

Crankcase Diagram Kawasaki KD80
- Year
- 1987
- Model code
- KD80-M8
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KD80-M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
172
|
172
172G08115 STUD,8X115Stud 8x115; |
172G08115 |
US $8.84 |
||
| replacement | |||||
|
172
|
172
172BA08115 STUD,8X115Stud 8x115; |
172BA08115 |
from US $2.79 |
||
|
220
|
220
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
220
|
220
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
220
|
220
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
220A
|
220A
220B0625
SCREW-PAN-CROSS,6X25
Screw pan head 6x25; |
220B0625 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0625 SCREW-PAN-CROSS,6X25Screw pan head 6x25; |
220AA0625 |
from US $0.95 |
||
|
220B
|
220B
220B0640
SCREW-PAN HEAD,6X40
Screw pan head 6x40; |
220B0640 |
— | ||
| replacement | |||||
|
220B
|
220B
220AA0640 SCREW-PAN HEAD,6X40Screw pan head 6x40; |
220AA0640 |
from US $0.95 |
||
|
220C
|
220C
220X0620 SCREW-PAN-CROS |
220X0620 |
from US $1.27 |
||
| replacement | |||||
|
220C
|
220C
220AD0620 SCREW-PAN-CROS |
220AD0620 |
from US $1.09 |
||
|
220D
|
220D
220X0660 SCREW-PAN-CROS |
220X0660 |
US $3.40 |
||
| replacement | |||||
|
220D
|
220D
220AD0660 SCREW-PAN-CROS |
220AD0660 |
from US $1.09 |
||
|
220E
|
220E
220X0665 SCREW-PAN-CROS |
220X0665 |
US $3.40 |
||
| replacement | |||||
|
220E
|
220E
220AD0665 SCREW-PAN-CROS |
220AD0665 |
from US $1.24 |
||
|
221
|
221
221B0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221B0616 |
from US $0.34 |
||
| replacement | |||||
|
221
|
221
221AA0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221AA0616 |
from US $0.92 |
||
|
601
|
601
601B6004 BEARING BALL #6004Bearing ball #6004; |
601B6004 |
from US $8.93 |
||
|
601A
|
601A
601B6005 BEARING BALL #6005Bearing ball #6005; |
601B6005 |
from US $10.93 |
||
|
610
|
610
610A0512 PIN DOWEL 5X12Pin dowel 5x12; |
610A0512 |
from US $0.94 |
||
|
11009
|
11009
13146002 GASKET NEUTRAL SWITCHGasket neutral switch; |
13146002 |
from US $2.95 |
||
|
11009A
|
11009A
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
|
14002
|
14002
14002-1181 CRANKCASE,LHCrankcase,lh; |
14002-1181 |
US $225.47 |
||
| replacement | |||||
|
14002
|
14002
14002-1597 CRANKCASE,LHCrankcase,lh; |
14002-1597 |
from US $225.47 |
||
|
14002A
|
14002A
14002-1205 CRANKCASE,RHCrankcase,rh; |
14002-1205 |
US $190.21 |
||
| replacement | |||||
|
14002A
|
14002A
14002-1598 CRANKCASE,RHCrankcase,rh; |
14002-1598 |
from US $224.17 |
||
|
14014
|
14014
14014008 HOLDER BEARING MSSONHolder bearing msson; |
14014008 |
from US $4.35 |
||
|
14014A
|
14014A
14014017 HOLDER CRANKSHAFT BRGHolder crankshaft brg; |
14014017 |
from US $4.67 |
||
|
92001
|
92001
92001-1426 BOLT,CRANK BRG HOLDERBolt,crank brg holder; |
92001-1426 |
from US $5.44 |
||
|
92028
|
92028
92028-069 BUSHING,14X20X14Bush drive shaft; |
92028-069 |
US $27.83 |
||
| replacement | |||||
|
92028
|
92028
92139-0210 BUSHING,14X20X14Bush drive shaft; |
92139-0210 |
from US $17.27 |
||
|
92043
|
92043
551A0816 PIN DOWEL 8X16 |
551A0816 |
US $0.74 |
||
|
92045
|
92045
92045-1032 BEARING-BALL,#6204Bearing-ball,#6204; |
92045-1032 |
from US $20.94 |
||
|
92046
|
92046
92046-037 BRG,N,7E-HK1412Brg,n,7e-hk1412; |
92046-037 |
from US $19.01 |
||
| replacement | |||||
|
92046
|
92046
92046-0043 BEARING-NEEDLE,HK1412Brg,n,7e-hk1412; |
92046-0043 |
from US $13.94 |
||
|
92049
|
92049
92049-004 OIL SEAL SB12205Oil seal sb12205; |
92049-004 |
from US $5.28 |
||
|
92049A
|
92049A
92049-1240 SEAL-OIL |
92049-1240 |
US $12.69 |
||
| replacement | |||||
|
92049A
|
92049A
92049-1481 SEAL-OIL |
92049-1481 |
from US $9.65 |
||
|
92049B
|
92049B
92050-013 OIL SEAL SC25376Oil seal sc25376; |
92050-013 |
from US $8.87 |
||
|
92066
|
92066
92066-1071 PLUG |
92066-1071 |
from US $9.17 |
||
|
92066A
|
92066A
92067-001 PLUG, OIL DRAINPlug oil drain; |
92067-001 |
from US $3.73 |
||
|
92066B
|
92066B
92074-035 RUBBER PLUGRubber plug; |
92074-035 |
from US $3.57 |
||
