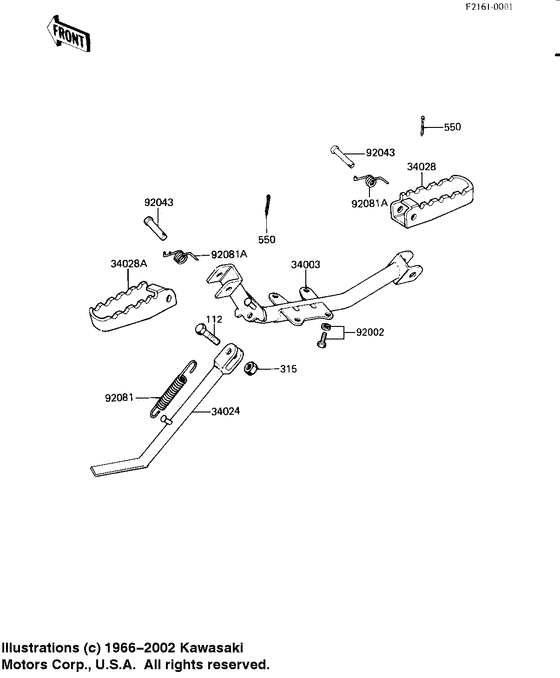

Footrests/stand Diagram Kawasaki KD80
- Year
- 1987
- Model code
- KD80-M8
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KD80-M
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112C1030 BOLT-UPSET |
112C1030 |
US $6.23 |
||
| replacement | |||||
|
112
|
112
112AB1030 BOLT-UPSET |
112AB1030 |
from US $1.40 |
||
|
315
|
315
315C1000 NUT-HEX-FINE |
315C1000 |
from US $1.43 |
||
| replacement | |||||
|
315
|
315
315AB1000 NUT-HEX-FINE |
315AB1000 |
from US $1.24 |
||
|
550
|
550
550D2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550D2515 |
US $0.79 |
||
| replacement | |||||
|
550
|
550
550AA2515 PIN-COTTER,2.5X15Pin,cotter,2.5x15; |
550AA2515 |
from US $0.78 |
||
|
34003
|
34003
34002-047
BAR,FOOTREST
Bar,footrest; |
34002-047 |
— | ||
|
34024
|
34024
34024-1013
STAND-SIDE
|
34024-1013 |
— | ||
|
34028
|
34028
34028-023
BAR,R.H FOOTREST
Bar,r.h footrest; |
34028-023 |
— | ||
|
34028A
|
34028A
34028-024
BAR,L.H FOOTREST
Bar,l.h footrest; |
34028-024 |
— | ||
|
92002
|
92002
92002-1231 BOLT,8X18Bolt,8x18; |
92002-1231 |
US $2.79 |
||
|
92043
|
92043
92043-080 PIN-FOOTREST BAR FITPin-footrest bar fit; |
92043-080 |
from US $3.33 |
||
|
92081
|
92081
34023-005 SPRING MAIN STAND |
34023-005 |
from US $8.31 |
||
|
92081A
|
92081A
92083-027 SPRING,FOOTRESTBARSpring,footrestbar; |
92083-027 |
US $14.76 |
||
