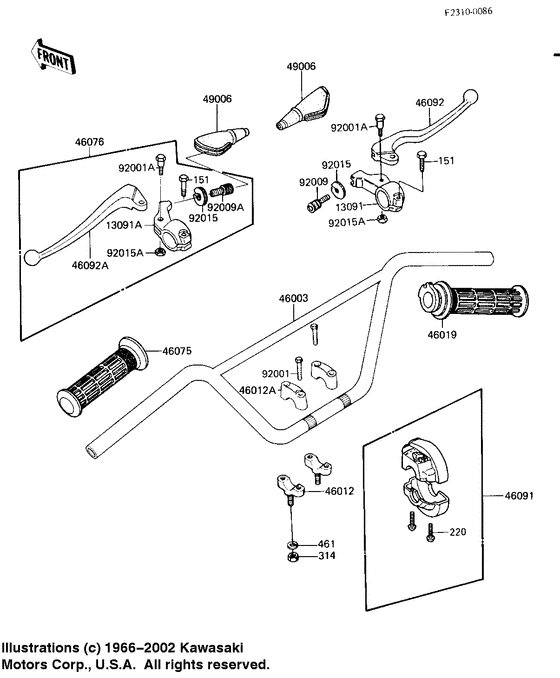

Handlebar Diagram Kawasaki KD80
- Year
- 1987
- Model code
- KD80-M8
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KD80-M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
151
|
151
151N0625 BOLT-WP |
151N0625 |
US $3.71 |
||
|
220
|
220
220B0518 SCREW-PAN-CROSScrew pan head 5x18; |
220B0518 |
from US $0.79 |
||
| replacement | |||||
|
220
|
220
220AA0518 SCREW-PAN-CROSScrew pan head 5x18; |
220AA0518 |
from US $0.94 |
||
|
314
|
314
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
314
|
314
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
461
|
461
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
461
|
461
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
13091
|
13091
4606001121 HOLDER,FR LEVER,F.BLKHolder,fr lever,f.blk; |
4606001121 |
US $27.54 |
||
|
13091A
|
13091A
4609401521 HOLDER,CL LEVER,F.BLKHolder,cl lever,f.blk; |
4609401521 |
US $30.65 |
||
|
46003
|
46003
46003-1055 HANDLEBAR,FLAT BLACKHandlebar,flat black; |
46003-1055 |
US $73.76 |
||
|
46012
|
46012
46012-002-80
HOLDER,HANDLEBAR,BUFF
Holder,handlebar,buff; |
46012-002-80 |
— | ||
|
46012A
|
46012A
46012-004
HOLDER UPPER HANDLBAR
Holder upper handlbar; |
46012-004 |
— | ||
| replacement | |||||
|
46012A
|
46012A
46012-1252 HOLDER-HANDLE,UPPHolder upper handlbar; |
46012-1252 |
US $15.36 |
||
|
46019
|
46019
46019-1005 GRIP ASSY,THROTTLEGrip assy,throttle; |
46019-1005 |
from US $33.42 |
||
|
46075
|
46075
46075-1004 GRIP,L.H.Grip,l.h.; |
46075-1004 |
from US $13.28 |
||
|
46076
|
46076
46076-045 Lever assy,clutchLever assy,clutch; |
46076-045 |
US $33.61 |
||
| replacement | |||||
|
46076
|
46076
46076-044 Lever assy,clutchLever assy,clutch; |
46076-044 |
from US $45.72 |
||
|
46091
|
46091
46091-1041 HOUSING ASSY,CONT,R.HHousing assy,cont,r.h; |
46091-1041 |
US $56.16 |
||
|
46092
|
46092
46058-004 LEVER, FRONT BRAKELever front brake; |
46058-004 |
from US $24.91 |
||
|
46092A
|
46092A
46092015 LEVER-CLUTCHLever-clutch; |
46092015 |
from US $20.45 |
||
|
49006
|
49006
49006-1017 BOOTS,LEVER HOLDERBoots,lever holder; |
49006-1017 |
from US $16.47 |
||
|
92001
|
92001
92001-1910 BOLT,FLANGED,8X35Bolt,flanged,8x35; |
92001-1910 |
from US $3.80 |
||
| replacement | |||||
|
92001
|
92001
92154-2923 BOLT,FLANGED,8X35Bolt,flanged,8x35; |
92154-2923 |
from US $4.61 |
||
|
92001A
|
92001A
92007-046 BOLT,HEX HEAD,5X22Bolt,hex head,5x22; |
92007-046 |
from US $4.59 |
||
|
92009
|
92009
46055010 SCREW,CABLE ADJUSTScrew,cable adjust; |
46055010 |
from US $17.88 |
||
|
92009A
|
92009A
46055003 SCREW CABLE ADJUSTScrew cable adjust; |
46055003 |
from US $11.09 |
||
|
92015
|
92015
46056005 NUT-LOCKNut-lock; |
46056005 |
from US $6.02 |
||
|
92015A
|
92015A
92019-014 NUT-LOCK,5MMNut-lock,5mm; |
92019-014 |
from US $3.01 |
||
