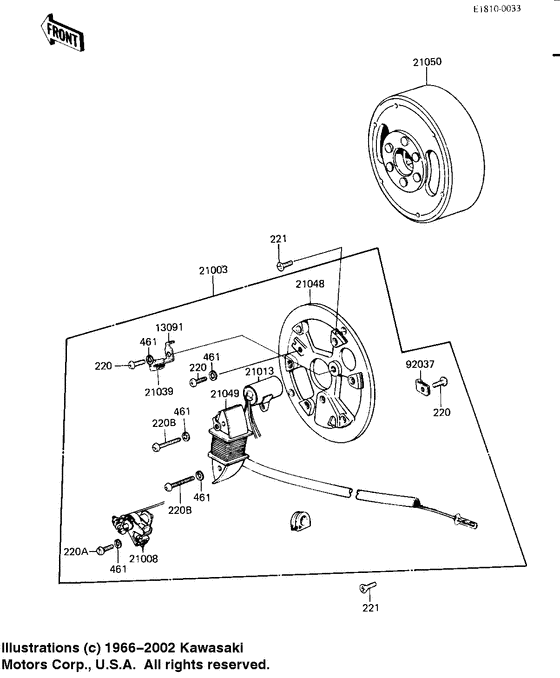

Ignition/generator Diagram Kawasaki KD80
- Year
- 1987
- Model code
- KD80-M8
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KD80-M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0406
SCREW-PAN CROS,4X6
Screw pan head 4x6; |
220B0406 |
— | ||
| replacement | |||||
|
220
|
220
220AA0406 SCREW-PAN CROS,4X6Screw pan head 4x6; |
220AA0406 |
from US $1.11 |
||
|
220A
|
220A
220B0412
SCREW-PAN-CRSOSS,4X12
Screw-pan-crsoss,4x12; |
220B0412 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0412 SCREW-PAN-CROSSScrew-pan-crsoss,4x12; |
220AA0412 |
from US $0.58 |
||
|
220B
|
220B
220E0430 SCREW PAN HEAD 4X30Screw pan head 4x30; |
220E0430 |
from US $0.94 |
||
|
221
|
221
221B0614 SCREW-CSK-CROS,6X14Screw cntsnk hd 6x14; |
221B0614 |
from US $0.95 |
||
| replacement | |||||
|
221
|
221
221AA0614 SCREW-CSK-CROS,6X14Screw cntsnk hd 6x14; |
221AA0614 |
from US $0.94 |
||
|
461
|
461
461F0400
WASHER-SPRING
Washer spring 4mm; |
461F0400 |
— | ||
| replacement | |||||
|
461
|
461
461DA0400 WASHER-SPRINGWasher spring 4mm; |
461DA0400 |
from US $0.78 |
||
|
13091
|
13091
21038002 HOLDER,OIL FELTHolder,oil felt; |
21038002 |
US $2.84 |
||
|
21003
|
21003
21003-1030 STATOR ASSY |
21003-1030 |
US $290.11 |
||
|
21008
|
21008
21008006 BREAKER ASSY CONTACTBreaker assy contact; |
21008006 |
from US $38.56 |
||
|
21013
|
21013
21013006
CONDENSER
|
21013006 |
— | ||
|
21039
|
21039
21019005
FELT OIL
|
21019005 |
— | ||
|
21048
|
21048
21048-1002
PLATE-COIL,MAGNETO
Plate-coil,magneto; |
21048-1002 |
— | ||
|
21049
|
21049
21049-1004
COIL,EXCITING
Coil,exciting; |
21049-1004 |
— | ||
|
21050
|
21050
21050-1008 FLYWHEEL,MAGNETOFlywheel,magneto; |
21050-1008 |
US $374.96 |
||
|
92037
|
92037
21037002 CLAMP WIRING HARNESSClamp wiring harness; |
21037002 |
US $2.93 |
||
