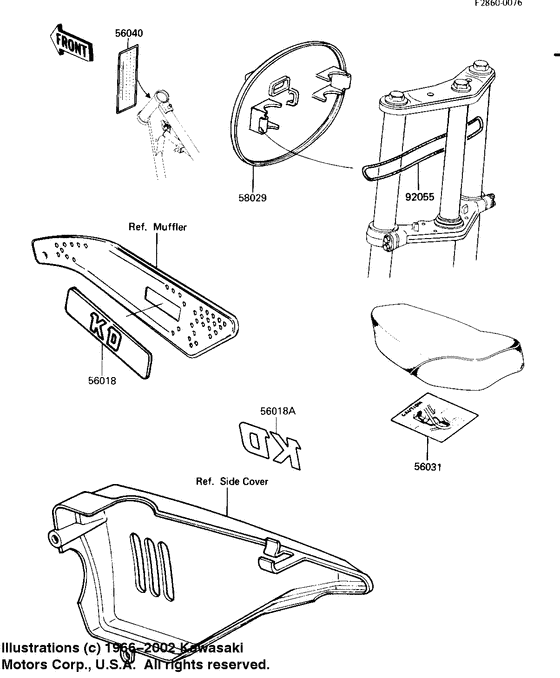

Labels/number plate Diagram Kawasaki KD80
- Year
- 1987
- Model code
- KD80-M8
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KD80-M
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56018
|
56018
56018-1320 MARK,MUFFLER COVERMark,muffler cover; |
56018-1320 |
US $9.32 |
||
|
56018A
|
56018A
56018-1925 MARK,SIDE COVER,KDMark,side cover,kd; |
56018-1925 |
US $10.44 |
||
|
56031
|
56031
56031-1068 LABEL,OIL VENT HOSELabel,oil vent hose; |
56031-1068 |
US $2.77 |
||
|
56040
|
56040
56040-1018 LABEL,OFF-ROAD VEHICLLabel,off-road vehicl; |
56040-1018 |
US $4.44 |
||
|
58029
|
58029
58029-1002-6B
PLATE-NUMBER,S.RED
Plate-number,s.red; |
58029-1002-6B |
— | ||
|
92055
|
92055
92055-1058
O RING,135MM
"o" ring,135mm; |
92055-1058 |
— |
