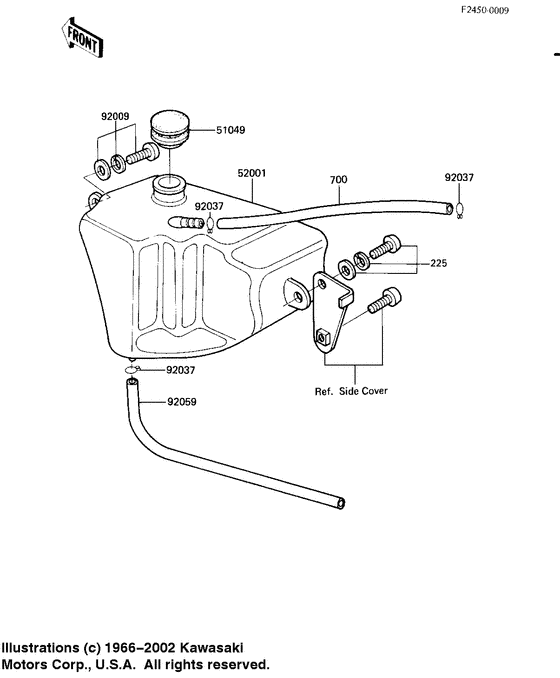

Oil tank Diagram Kawasaki KD80
- Year
- 1987
- Model code
- KD80-M8
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KD80-M
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
225
|
225
225B0620
SCREW-PAN-WSP-CROS
|
225B0620 |
— | ||
| replacement | |||||
|
225
|
225
225AA0620 SCREW-PAN-WSP-CROS |
225AA0620 |
from US $1.24 |
||
|
700
|
700
700Q05400
TUBE-PVC,5X1000
Tube-vinyl,5x400; |
700Q05400 |
— | ||
| replacement | |||||
|
700
|
700
700Q051000
TUBE-PVC,5X1000
Tube-vinyl,5x400; |
700Q051000 |
— | ||
|
51049
|
51049
52003-024 CAP,OIL TANKCap,oil tank; |
52003-024 |
US $10.35 |
||
|
52001
|
52001
52001-1005
TANK,OIL
Tank,oil; |
52001-1005 |
— | ||
|
92009
|
92009
92009-1283 SCREW,-PAN-WSP-CROS,6Screw,-pan-wsp-cros,6; |
92009-1283 |
from US $3.04 |
||
|
92037
|
92037
92037-010 CLAMP FUEL PIPEClamp fuel pipe; |
92037-010 |
from US $2.69 |
||
|
92059
|
92059
92059-1691
TUBE,4.5X9X380
Tube,4.5x9x380; |
92059-1691 |
— | ||
