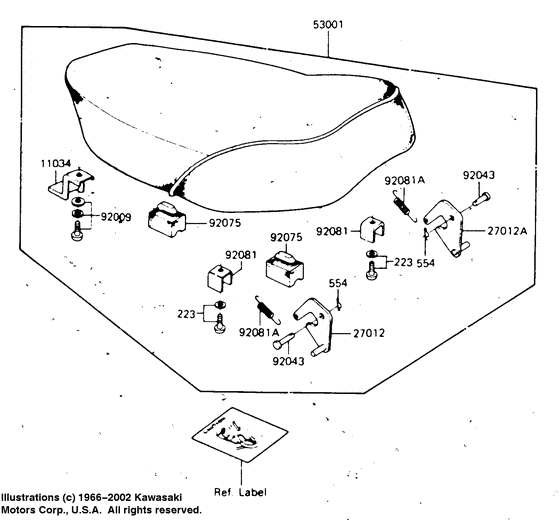

Seat Diagram Kawasaki KD80
- Year
- 1987
- Model code
- KD80-M8
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KD80-M
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223B0612
SCREW-PAN-WS-CROS
|
223B0612 |
— | ||
| replacement | |||||
|
223
|
223
223AA0612 SCREW-PAN-WS-CROS |
223AA0612 |
from US $0.65 |
||
|
554
|
554
554A0600
PIN-SNAP
Pin,snap; |
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAPPin,snap; |
554DA0600 |
from US $1.36 |
||
|
11034
|
11034
53032-004 BRACKET,SEATBracket,seat; |
53032-004 |
US $5.54 |
||
|
27012
|
27012
53008-031 HOOK,L.H SEATHook,l.h seat; |
53008-031 |
US $8.32 |
||
|
27012A
|
27012A
53008-032 HOOK,R.H SEATHook,r.h seat; |
53008-032 |
US $7.83 |
||
|
53001
|
53001
53001-1460 SEAT-ASSY |
53001-1460 |
US $179.39 |
||
|
92009
|
92009
92009-1282 SCREW |
92009-1282 |
US $2.68 |
||
|
92043
|
92043
53011-001
PIN DUAL SEAT PIVOT
|
53011-001 |
— | ||
|
92075
|
92075
92075-099 DAMPER RUBBERDamper rubber; |
92075-099 |
from US $3.33 |
||
|
92081
|
92081
53012-012
SPRING,SEAT HOOK
Spring,seat hook; |
53012-012 |
— | ||
|
92081A
|
92081A
53012-013
SPRING,HOOK
Spring,hook; |
53012-013 |
— | ||
