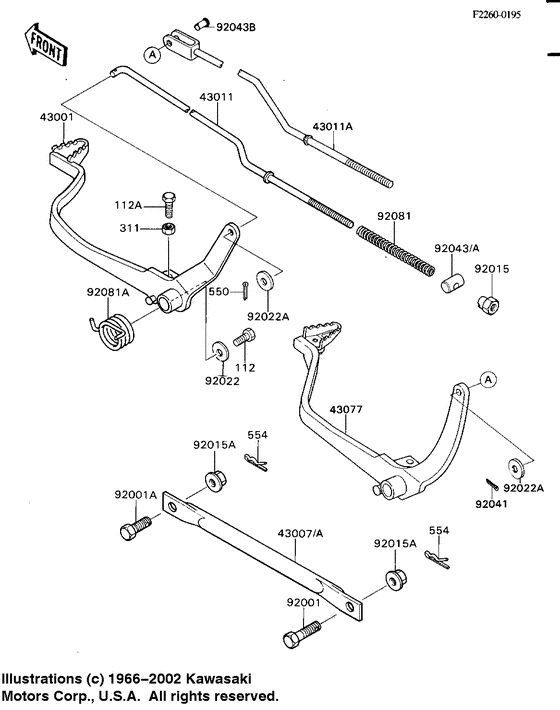

Brake pedal Diagram Kawasaki KD80
- Year
- 1988
- Model code
- KD80-N1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KD80-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43001
|
43001
43001-1251 LEVER-BRAKE,PEDALLever-brake,pedal; |
43001-1251 |
from US $59.54 |
||
|
43007
|
43007
43007-1141 ROD-TORQUE |
43007-1141 |
from US $22.41 |
||
|
43011
|
43011
43011-1142 ROD-BRAKE |
43011-1142 |
US $20.28 |
||
|
92001
|
92001
92003-003 BOLT,10X32Bolt,10x32; |
92003-003 |
US $4.16 |
||
| replacement | |||||
|
92001
|
92001
92150-1872 BOLT,10X32Bolt,10x32; |
92150-1872 |
from US $4.12 |
||
|
92001A
|
92001A
92003-017 BOLT TORQUE LINK FIT - N.L.A.Bolt,10x25; |
92003-017 |
US $4.95 |
||
| replacement | |||||
|
92001A
|
92001A
92150-1873 BOLT,10X25Bolt,10x25; |
92150-1873 |
from US $3.17 |
||
|
92015
|
92015
92015-042 NUT-BRAKE ROD ADJUSTNut,brake rod; |
92015-042 |
from US $3.48 |
||
|
92015A
|
92015A
92015-1428 NUT,FLANGED,10MMNut,flanged,10mm; |
92015-1428 |
from US $3.01 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
Washer,6.5x20x1.6; |
92022-125 |
— | ||
|
92022A
|
92022A
92022-165 WASHER-PLAINWasher,plain,6mm; |
92022-165 |
from US $0.79 |
||
| replacements | |||||
|
92022A
|
92022A
92022-125
WASHER 6.5X20X1.6T
Washer,plain,6mm; |
92022-125 |
— | ||
|
92022A
|
92022A
92200-0283 WASHER,6.5X20X1.6Washer,plain,6mm; |
92200-0283 |
from US $0.72 |
||
|
92043
|
92043
92043-039
PIN,BRAKE ROD
Pin,brake rod; |
92043-039 |
— | ||
| replacement | |||||
|
92043
|
92043
92043-0147 PIN,BRAKE RODPin,brake rod; |
92043-0147 |
from US $3.17 |
||
|
92081
|
92081
43012001 SPRING,BRAKE RODSpring,brake rod; |
43012001 |
from US $3.33 |
||
|
92081A
|
92081A
92081-1782 SPRING,BRAKE PEDAL RESpring,brake pedal return; |
92081-1782 |
from US $8.87 |
||
|
112
|
112
112G0616
BOLT-UPSET,6X16
|
112G0616 |
— | ||
| replacement | |||||
|
112
|
112
112BA0616 BOLT-UPSET,6X16 |
112BA0616 |
from US $0.86 |
||
|
112A
|
112A
112G0620
BOLT-UPSET
|
112G0620 |
— | ||
| replacement | |||||
|
112A
|
112A
112BA0620 BOLT-UPSET |
112BA0620 |
from US $0.95 |
||
|
311
|
311
311G0600 NUT-HEXNut-hex,6mm; |
311G0600 |
US $0.95 |
||
| replacement | |||||
|
311
|
311
311BA0600 NUT-HEXNut-hex,6mm; |
311BA0600 |
from US $0.95 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin-cotter,2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin-cotter,2.0x15; |
550AA2015 |
from US $0.63 |
||
|
554
|
554
554A0800 PIN-SNAPPin-snap,8mm; |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
554
|
554
554DA0800 PIN-SNAPPin-snap,8mm; |
554DA0800 |
from US $0.63 |
||
