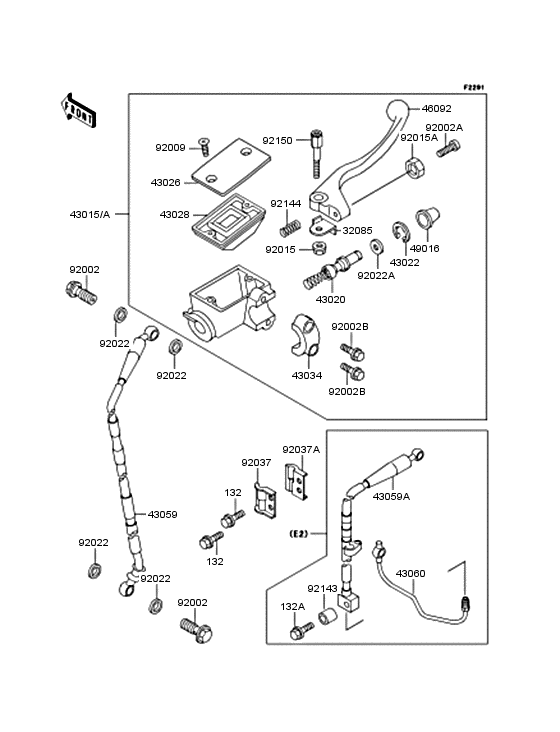

Front master cylinder Diagram Kawasaki KDX200 KDX200
- Year
- 1990
- Colour
- Lime Green (7F)
- Model code
- KDX200-E2
- Sales region
- Japan
- Engine Capacity
- 200
- Frame
- DX200E 006001 -
- Engine
- DX200EE 006001 -
- Model
- KDX200-E (KDX200)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0616
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ) |
132G0616 |
— | ||
| replacement | |||||
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ) |
132BA0616 |
from US $0.79 |
||
|
132A
|
132A
132G0630
BOLT-FLANGED-SMALL
ボルト(コガタツバツキ) |
132G0630 |
— | ||
| replacement | |||||
|
132A
|
132A
132BA0630 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BA0630 |
from US $1.27 |
||
|
32085
|
32085
32085-1318 STOPPERストツパ |
32085-1318 |
from US $4.77 |
||
|
43015
|
43015
43015-1396 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-1396 |
US $251.77 |
||
| replacement | |||||
|
43015
|
43015
43015-1586 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-1586 |
US $251.77 |
||
|
43015A
|
43015A
43015-1423 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-1423 |
US $251.77 |
||
| replacement | |||||
|
43015A
|
43015A
43015-1587 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-1587 |
US $251.77 |
||
|
43020
|
43020
43020-1071 PISTON-COMP-BRAKEピストンコンプ(ブレ-キ) |
43020-1071 |
from US $42.04 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERストツパ(ブレ-キ)，ピストン |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1063 CAP-BRAKEキヤツプ(ブレ-キ) |
43026-1063 |
US $26.33 |
||
|
43028
|
43028
43028-1067 DIAPHRAGMダイアフラム |
43028-1067 |
from US $13.62 |
||
|
43034
|
43034
43034-1016 HOLDER-BRAKE,MASTER Cホルダ(ブレ-キ) |
43034-1016 |
from US $14.10 |
||
|
43059
|
43059
43059-1465 HOSE-BRAKE,FRホ-ス(ブレ-キ)，FR |
43059-1465 |
from US $146.93 |
||
|
43059A
|
43059A
43059-1571 HOSE-BRAKE,FRホ-ス(ブレ-キ)，FR |
43059-1571 |
from US $141.08 |
||
|
43060
|
43060
43060-1072
PIPE-BRAKE,FR
パイプ(ブレ-キ)，FR |
43060-1072 |
— | ||
|
46092
|
46092
46092-1148 LEVER-GRIP,FRONT BRAKEレバ-(グリツプ)，フロント ブレ-キ |
46092-1148 |
from US $22.29 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERカバ-(シ-ル) |
49016-1044 |
from US $10.61 |
||
|
92002
|
92002
92002-1888
BOLT,OIL,L=23
ボルト，オイル，L=23 |
92002-1888 |
— | ||
| replacement | |||||
|
92002
|
92002
92153-0627 BOLT,OIL,L=23ボルト，オイル，L=23 |
92153-0627 |
from US $2.85 |
||
|
92002A
|
92002A
92002-1893 BOLT,ADJUSTボルト，アジヤスト |
92002-1893 |
from US $4.75 |
||
|
92002B
|
92002B
92002-1894 Boltボルト |
92002-1894 |
from US $3.17 |
||
|
92009
|
92009
92009-1458 SCREW,4MMスクリユ-，4MM |
92009-1458 |
from US $3.02 |
||
|
92015A
|
92015A
92015-1642 NUT,ADJUSTナツト，アジヤスト |
92015-1642 |
from US $2.53 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMナツト，フランジ，6MM |
92015-1233 |
from US $3.90 |
||
|
92022
|
92022
43067-001
WASHER-SEAL,10.1X14.5
ワツシヤ-(オイル)，10.5X15X1.5 |
43067-001 |
— | ||
| replacement | |||||
|
92022
|
92022
49091-0001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
49091-0001 |
US $2.81 |
||
|
92022A
|
92022A
92022-1814 WASHERワツシヤ |
92022-1814 |
from US $2.85 |
||
|
92037
|
92037
92037-1362 CLAMP,BRAKE HOSE,OUTSクランプ，ブレ-キ ホ-ス，アウトサイド |
92037-1362 |
from US $4.95 |
||
|
92037A
|
92037A
92037-1363 CLAMP,BRAKE HOSE,INSIクランプ，ブレ-キ ホ-ス，インサイド |
92037-1363 |
from US $4.12 |
||
|
92143
|
92143
92143-1408 COLLAR,6.5X9.5X17カラ-，6.5X9.5X17 |
92143-1408 |
from US $3.33 |
||
|
92144
|
92144
92144-1103 SPRING,RETURNスプリング，リタ-ン |
92144-1103 |
from US $6.34 |
||
|
92150
|
92150
92150-1383 BOLT,LEVER SETボルト，レバ- セツト |
92150-1383 |
from US $13.15 |
||
