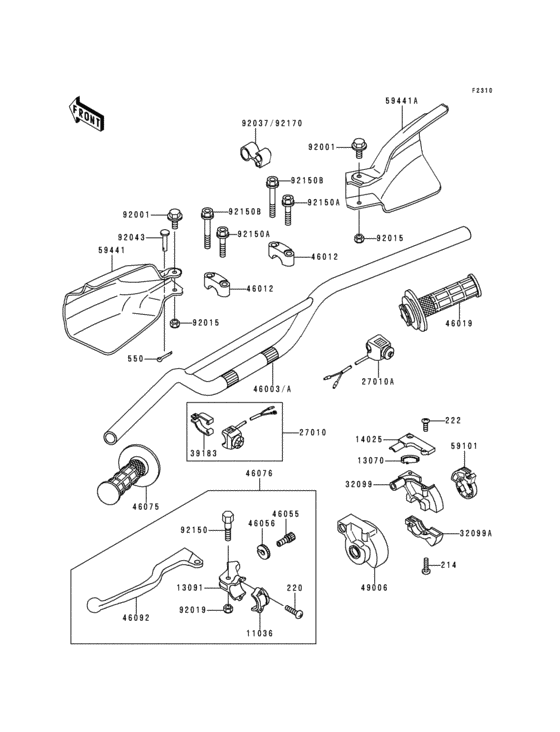

Handlebar Diagram Kawasaki KDX200 KDX200
- Year
- 1992
- Model code
- KDX200-E4
- Sales region
- General
- Engine Capacity
- 200
- Frame
- DX200E 019601 - 022500
- Model
- KDX200-E (KDX200)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
214
|
214
220AB0518 SCREW-PAN-CROS,5X18 |
220AB0518 |
from US $0.79 |
||
|
220
|
220
220AB0514 SCREW-PAN-CROSS |
220AB0514 |
from US $1.25 |
||
|
222
|
222
222E0412 SCREW OVL CNTSNK 4X12 |
222E0412 |
from US $0.95 |
||
|
550
|
550
550AA1210 PIN-COTTER,1.2X10 |
550AA1210 |
from US $1.12 |
||
|
11036
|
11036
11056-0150
BRACKET,LEVER HOLDER
|
11056-0150 |
— | ||
| replacement | |||||
|
11036
|
11036
11058-2777 BRACKET,LEVER HOLDER |
11058-2777 |
US $17.31 |
||
|
13070
|
13070
13070-1073 GUIDE,THROTTLE PEACE |
13070-1073 |
US $5.39 |
||
|
13091
|
13091
13091-1131 HOLDER,CLUTCH LEVER |
13091-1131 |
from US $30.52 |
||
|
14025
|
14025
14025-1646 COVER,THROTTLE CASE U |
14025-1646 |
from US $7.13 |
||
|
27010
|
27010
27010-1350 Switch, engine stop |
27010-1350 |
from US $36.95 |
||
|
27010A
|
27010A
27010-1279 SWITCH,LIGHTING |
27010-1279 |
from US $50.86 |
||
|
32099
|
32099
32099-1036 CASE,THROTTLE UPP |
32099-1036 |
from US $24.98 |
||
|
32099A
|
32099A
32099-0038 CASE,THROTTLE,LWR |
32099-0038 |
from US $11.09 |
||
|
39183
|
39183
39183-1059 BAND-ASSY,ENGINE STOP |
39183-1059 |
from US $8.87 |
||
|
46003
|
46003
46003-1316-CE HANDLE,SILVER NO.25 |
46003-1316-CE |
from US $106 |
||
|
46012
|
46012
46012-1191
HOLDER-HANDLE
|
46012-1191 |
— | ||
|
46019
|
46019
46019-1054 GRIP-ASSY,THROTTLE |
46019-1054 |
from US $26.33 |
||
|
46055
|
46055
46055009 SCREW,CABLE ADJUST |
46055009 |
from US $12.99 |
||
|
46056
|
46056
46056006 NUT,CABLE ADJUST LOCK |
46056006 |
from US $6.02 |
||
|
46075
|
46075
46075-1024 GRIP,LH |
46075-1024 |
from US $17.58 |
||
|
46076
|
46076
46076-1163 LEVER-ASSY-GRIP,CLUTCH |
46076-1163 |
from US $59.55 |
||
|
46092
|
46092
46092-1110 LEVER-GRIP,CLUTCH |
46092-1110 |
US $28.24 |
||
| replacement | |||||
|
46092
|
46092
46092-0045 LEVER-GRIP,CLUTCH |
46092-0045 |
from US $23.33 |
||
|
49006
|
49006
49006-1097 BOOT,THROTTLE CASE |
49006-1097 |
from US $12.83 |
||
|
59101
|
59101
59101-1103 REEL,THROTTLE |
59101-1103 |
from US $9.19 |
||
|
59441
|
59441
59441-1094-6W
COVER-HANDLE,LH,L.GRE
|
59441-1094-6W |
— | ||
|
59441A
|
59441A
59441-1098-6W
COVER-HANDLE,RH,L.GRE
|
59441-1098-6W |
— | ||
| replacement | |||||
|
59441A
|
59441A
59441-1099-6W
COVER-HNDL,RH,L.GRN
|
59441-1099-6W |
— | ||
|
92001
|
92001
92001-1034 BOLT,HEX HEAD,6X10 |
92001-1034 |
from US $6.49 |
||
|
92015
|
92015
92015-1603 NUT |
92015-1603 |
from US $2.85 |
||
|
92019
|
92019
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92037
|
92037
92037-1629 CLAMP,BRAKE HOSE |
92037-1629 |
US $6.18 |
||
|
92043
|
92043
92043-1434 PIN,5X27.5 |
92043-1434 |
from US $5.54 |
||
|
92150
|
92150
92150-1291 Bolt |
92150-1291 |
from US $14.73 |
||
|
92150A
|
92150A
92153-1519 BOLT,FLANGED,8X30 |
92153-1519 |
from US $3.80 |
||
|
92150B
|
92150B
92150-1456 BOLT,FLANGED,8X45 |
92150-1456 |
US $6.18 |
||
