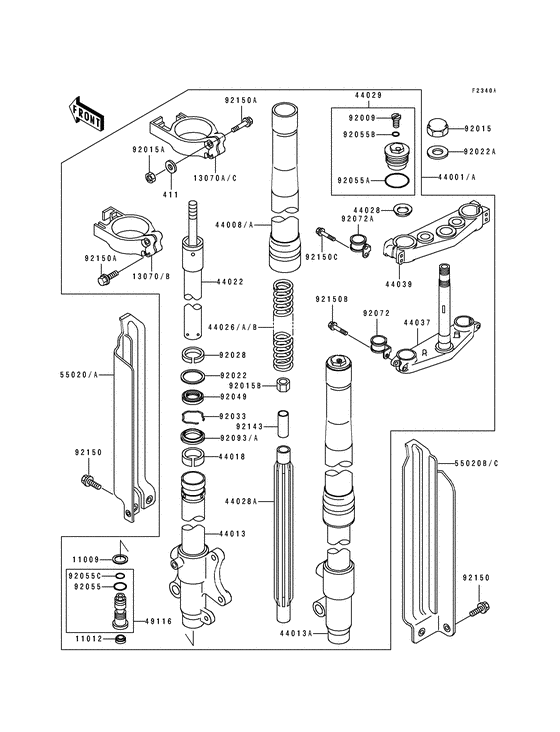

Front fork @ (Kdx250-d2/d3/d4) Diagram Kawasaki KDX250 KDX250R
- Year
- 1992
- Model code
- KDX250-D2
- Sales region
- USA
- Engine Capacity
- 250
- Model
- KDX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1592 GASKET,FORK CYLINDERGasket,fork cylinder bolt; |
11009-1592 |
from US $4.59 |
||
|
11012
|
11012
11012-1381 CAP,FORK CYLINDERCap,fork cylinder; |
11012-1381 |
from US $4.28 |
||
|
13070
|
13070
13070-1222 GUIDE,FORK,LHGuide,fork,lh; |
13070-1222 |
US $25.73 |
||
|
13070A
|
13070A
13070-1223 GUIDE,FORK,RHGuide,fork,rh; |
13070-1223 |
US $25.73 |
||
|
44001
|
44001
44001-1838 FORK-FRONT |
44001-1838 |
from US $3,002.76 |
||
|
44008
|
44008
44008-1015 PIPE-FORK OUTER |
44008-1015 |
US $646.88 |
||
|
44013
|
44013
44013-1350 PIPE-FORK INNERPipe-fork inner,lh; |
44013-1350 |
from US $390.59 |
||
|
44013A
|
44013A
44013-1351 PIPE-FORK INNERPipe-fork inner,rh; |
44013-1351 |
from US $390.59 |
||
|
44018
|
44018
44018-1056 PISTON-FORK,INNER PIPPiston-fork,inner pipe; |
44018-1056 |
from US $21.09 |
||
|
44022
|
44022
44022-1268 CYLINDER-FORK |
44022-1268 |
from US $259.25 |
||
|
44026
|
44026
44026-1496 SPRING-FRONT FORKSpring-front fork,k=0.35; |
44026-1496 |
US $79.74 |
||
|
44026A
|
44026A
44026-1502 SPRING-FRONT FORK,K=0Spring-front fork,k=0.34; (option) |
44026-1502 |
from US $75.01 |
||
|
44026B
|
44026B
44026-1503 SPRING-FRONT FORK,K=0Spring-front fork,k=0.36; (option) |
44026-1503 |
from US $75.01 |
||
|
44028
|
44028
44028-1081 GUIDE-FORK SPRING |
44028-1081 |
from US $8.87 |
||
|
44028A
|
44028A
44028-1084 GUIDE-FORK SPRING |
44028-1084 |
from US $9.19 |
||
|
44029
|
44029
44029-1149 SEAT-FORK SPRING |
44029-1149 |
from US $89.31 |
||
|
44037
|
44037
44037-1290 Holder-fork under |
44037-1290 |
from US $646.14 |
||
|
44039
|
44039
44039-1218 HOLDER-FORK UPPER |
44039-1218 |
from US $206.18 |
||
|
49116
|
49116
49116-1096 VALVE-ASSYValve-assy,fork; |
49116-1096 |
from US $155.16 |
||
|
55020
|
55020
55020-1363 Guard,fork,lhGuard,fork,lh; |
55020-1363 |
US $32.54 |
||
| replacements | |||||
|
55020
|
55020
55020-0196-RZ GUARD,FORK,LH,WHITEGuard,fork,lh; |
55020-0196-RZ |
from US $36.50 |
||
|
55020
|
55020
92152-0315 COLLAR,8X12.7X4Guard,fork,lh; |
92152-0315 |
from US $2.85 |
||
|
55020
|
55020
55020-0132-RZ GUARD,FORK,LH,WHITEGuard,fork,lh; |
55020-0132-RZ |
US $44.43 |
||
|
55020
|
55020
55020-0004-RZ GUARD,FORK,LH,WHITEGuard,fork,lh; |
55020-0004-RZ |
US $40.39 |
||
|
55020B
|
55020B
55020-1423 Guard,fork,rhGuard,fork,rh; |
55020-1423 |
US $38.41 |
||
| replacements | |||||
|
55020B
|
55020B
55020-0199-RZ GUARD,FORK,RH,WHITEGuard,fork,rh; |
55020-0199-RZ |
from US $30.38 |
||
|
55020B
|
55020B
92152-0315 COLLAR,8X12.7X4Guard,fork,rh; |
92152-0315 |
from US $2.85 |
||
|
55020B
|
55020B
55020-0005-RZ
GUARD,FORK,RH,WHITE
Guard,fork,rh; |
55020-0005-RZ |
— | ||
|
55020B
|
55020B
55020-1423-RZ
GUARD,FORK,RH,WHITE
Guard,fork,rh; |
55020-1423-RZ |
— | ||
|
92009
|
92009
92009-1568 SCREW |
92009-1568 |
from US $3.96 |
||
|
92015
|
92015
92015-1653
NUT,STEERING STEM,22M
Nut,steering stem,22mm; |
92015-1653 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-1521 NUT,STEERING STEM,22MNut,steering stem,22mm; |
92210-1521 |
from US $10.30 |
||
|
92015A
|
92015A
92015-1752 NUT,LOCK,FLANGED,5MMNut,lock,flanged,5mm; |
92015-1752 |
from US $2.69 |
||
|
92015B
|
92015B
92015-1827 NUT |
92015-1827 |
from US $18.81 |
||
|
92022
|
92022
92022-1299 WASHER |
92022-1299 |
from US $5.39 |
||
|
92022A
|
92022A
92022-1873 WASHERWasher,steering stem; |
92022-1873 |
from US $4.75 |
||
|
92028
|
92028
92028-1581 BUSHING |
92028-1581 |
from US $16.16 |
||
|
92033
|
92033
92033-1077 RING-SNAP |
92033-1077 |
from US $3.01 |
||
|
92049
|
92049
92049-1373 SEAL-OIL |
92049-1373 |
from US $21.24 |
||
|
92055
|
92055
92055-1156 0 RING,18MM |
92055-1156 |
from US $0.95 |
||
| replacement | |||||
|
92055
|
92055
670B2018 0 RING,18MM |
670B2018 |
from US $3.20 |
||
|
92055A
|
92055A
92055-1333 ORING,REAR SHOCKRing-o,fork,air tube; |
92055-1333 |
from US $2.85 |
||
|
92055B
|
92055B
92055-1441 O RING,3MM |
92055-1441 |
US $2.85 |
||
| replacement | |||||
|
92055B
|
92055B
670B1503 O RING,3MM |
670B1503 |
from US $2.85 |
||
|
92055C
|
92055C
92055-1502 RING-O,FORK VALVERing-o,fork valve; |
92055-1502 |
from US $4.75 |
||
|
92072
|
92072
92072-1267 BAND |
92072-1267 |
from US $13.31 |
||
|
92072A
|
92072A
92072-1268
BAND
|
92072-1268 |
— | ||
|
92093
|
92093
92093-1315 SEAL,FORK OUTER TUBESeal,fork outer tube; |
92093-1315 |
US $16.36 |
||
| replacement | |||||
|
92093
|
92093
92093-1342 SEAL,FORK OUTER TUBESeal,fork outer tube; |
92093-1342 |
from US $14.10 |
||
|
92143
|
92143
92143-1516 COLLARCollar,fork; |
92143-1516 |
from US $6.88 |
||
|
92150
|
92150
92150-1340
BOLT,6X14
Bolt,6x14; |
92150-1340 |
— | ||
| replacement | |||||
|
92150
|
92150
92150-1505 BoltBolt,6x14; |
92150-1505 |
from US $3.01 |
||
|
92150A
|
92150A
92150-1434 BOLT,5X40Bolt,flanged,5x40; |
92150-1434 |
from US $3.33 |
||
|
92150B
|
92150B
92150-1446 BOLT,10X40Bolt,flanged,8x40; |
92150-1446 |
from US $7.92 |
||
|
92150C
|
92150C
92150-1516 BOLT,FLANGED,8X40Bolt,flanged,8x40; |
92150-1516 |
from US $9.66 |
||
|
411
|
411
411B0500
W-PLAIN-S
Washer-plain,5mm; |
411B0500 |
— | ||
| replacements | |||||
|
411
|
411
411AA0500 WASHER-PLAIN,5MMWasher-plain,5mm; |
411AA0500 |
from US $0.88 |
||
|
411
|
411
410AA0500 W-PLAIN-SWasher-plain,5mm; |
410AA0500 |
from US $0.78 |
||
