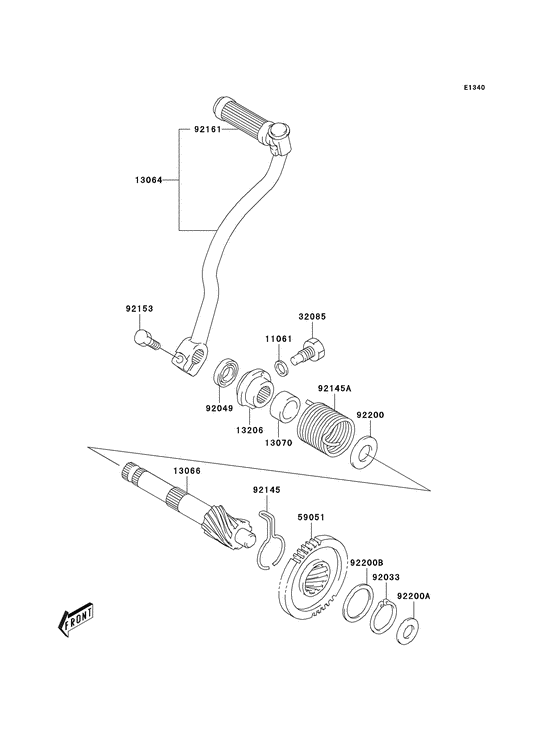

Kickstarter mechanism Diagram Kawasaki KDX50
- Year
- 2005
- Model code
- KDX50-A3
- Sales region
- USA
- Engine Capacity
- 50
- Model
- KDX50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S021 GASKET,10X14X3.6Gasket,10x14x3.6; |
11061-S021 |
from US $2.38 |
||
|
13064
|
13064
13064-S003 LEVER-ASSY-KICK |
13064-S003 |
US $50.26 |
||
|
13066
|
13066
13066-S002 SHAFT-KICK |
13066-S002 |
US $56.08 |
||
|
13070
|
13070
13070-S016 GUIDE,KICK RETURN SPRGuide,kick return spring; |
13070-S016 |
US $12.89 |
||
|
13206
|
13206
13206-S002 GUIDE-KICK |
13206-S002 |
US $28.78 |
||
|
32085
|
32085
32085-S014 STOPPER,KICK STARTERStopper,kick starter; |
32085-S014 |
US $2.23 |
||
|
59051
|
59051
59051-S006 GEAR-SPUR |
59051-S006 |
US $74.14 |
||
|
92033
|
92033
92033-S045 RING-SNAP |
92033-S045 |
US $1.94 |
||
|
92049
|
92049
92049-S056 SEAL-OIL,STARTER SHAFSeal-oil,starter shaft; |
92049-S056 |
US $2.68 |
||
| replacement | |||||
|
92049
|
92049
92049-S080 Seal-Oil,Starter ShafSeal-oil,starter shaft; |
92049-S080 |
US $15.08 |
||
|
92145
|
92145
92145-S110 SPRING |
92145-S110 |
US $4.16 |
||
|
92145A
|
92145A
92145-S117 SPRING,KICK STARTERSpring,kick starter; |
92145-S117 |
US $80.40 |
||
|
92153
|
92153
92153-S127 BOLT |
92153-S127 |
US $1.21 |
||
| replacement | |||||
|
92153
|
92153
92153-S543 BOLT |
92153-S543 |
US $2.48 |
||
|
92161
|
92161
92161-S109 DAMPER,KICK STARTER PDamper,kick starter pedal; |
92161-S109 |
US $4 |
||
|
92200
|
92200
92200-S073 WASHER,16X30X1Washer,16x30x1; |
92200-S073 |
US $50.80 |
||
|
92200A
|
92200A
92200-S170 WASHER,GEAR SHIFT SHAWasher,gear shift shaft; |
92200-S170 |
US $1.62 |
||
|
92200B
|
92200B
92200-S172 WASHER,25X32X1Washer,25x32x1; |
92200-S172 |
US $2.38 |
||
