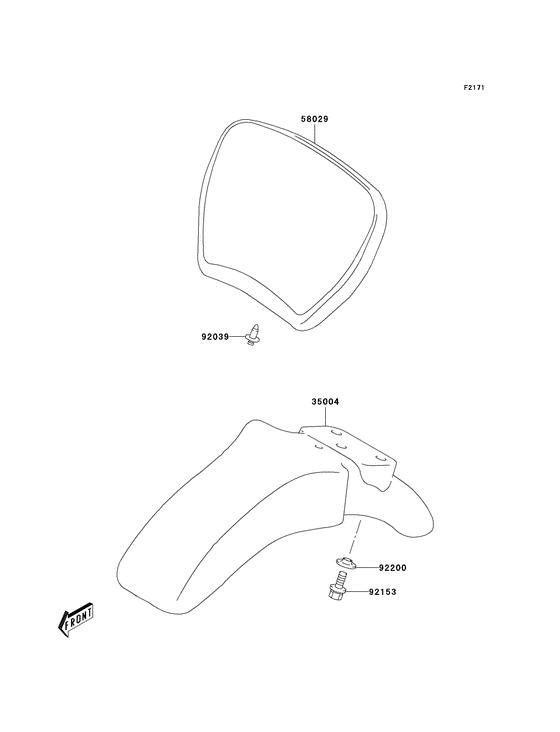

Front fender Diagram Kawasaki KDX50
- Year
- 2006
- Model code
- KDX50A6F
- Sales region
- USA
- Engine Capacity
- 50
- Model
- KDX50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35004
|
35004
35004-S012-908 FENDER-FRONT,L.GREENFender-front,l.green; |
35004-S012-908 |
US $47.58 |
||
|
58029
|
58029
58029-S002-533 PLATE-NUMBER,S.WHITEPlate-number,s.white; |
58029-S002-533 |
US $21.96 |
||
|
92039
|
92039
92039-S005-506 RIVET,BLACKRivet,black; |
92039-S005-506 |
from US $2.22 |
||
|
92153
|
92153
92153-S320 BOLT,FRONT FENDERBolt,6x16; |
92153-S320 |
US $2.23 |
||
|
92200
|
92200
92200-S174 WASHER,FRONT FENDERWasher,front fender; |
92200-S174 |
US $2.75 |
||
| replacement | |||||
|
92200
|
92200
92200-S308 WASHER,FRONT FENDERWasher,front fender; |
92200-S308 |
US $55.80 |
||
