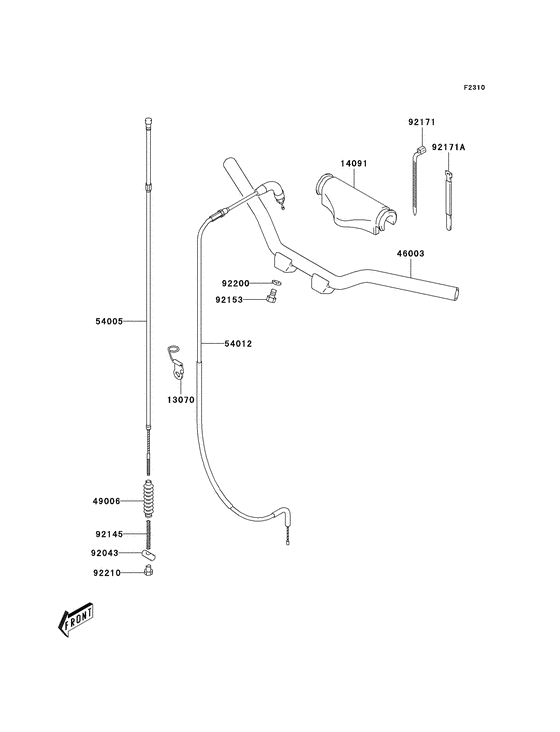

Handlebar Diagram Kawasaki KDX50
- Year
- 2006
- Model code
- KDX50A6F
- Sales region
- USA
- Engine Capacity
- 50
- Model
- KDX50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13070
|
13070
13070-S017 GUIDE,CABLEGuide,cable; |
13070-S017 |
US $6.35 |
||
|
14091
|
14091
14091-S099
COVER,HANDLE
Cover,handle; |
14091-S099 |
— | ||
|
46003
|
46003
46003-S008-504 HANDLE,BLACKHandle,black; |
46003-S008-504 |
US $46.91 |
||
|
49006
|
49006
49006-S027 BOOT,FRONT BRAKE CABLBoot,front brake cable; |
49006-S027 |
US $3.83 |
||
|
54005
|
54005
54005-S012 CABLE-BRAKE |
54005-S012 |
US $16.78 |
||
|
54012
|
54012
54012-S012 CABLE-THROTTLE |
54012-S012 |
US $26.13 |
||
|
92043
|
92043
92043-S006 PIN |
92043-S006 |
from US $2.69 |
||
|
92145
|
92145
92145-S121 SPRING,FRONT BRAKE CASpring,front brake cable; |
92145-S121 |
US $1.78 |
||
|
92153
|
92153
92153-S321 BOLT |
92153-S321 |
US $1.44 |
||
| replacement | |||||
|
92153
|
92153
92153-S552 BOLT |
92153-S552 |
US $20.57 |
||
|
92171
|
92171
92171-S014 CLAMPClamp,l=125; |
92171-S014 |
from US $2.05 |
||
|
92171A
|
92171A
92171-S106 CLAMP,L=140Clamp,l=140; |
92171-S106 |
US $3.24 |
||
| replacement | |||||
|
92171A
|
92171A
92171-S176 CLAMP,L=140Clamp,l=140; |
92171-S176 |
US $3.24 |
||
|
92200
|
92200
92200-S167 WASHER |
92200-S167 |
US $1.21 |
||
| replacement | |||||
|
92200
|
92200
92200-S293 WASHER |
92200-S293 |
US $1.21 |
||
|
92210
|
92210
92210-S014 NUT |
92210-S014 |
from US $2.85 |
||
