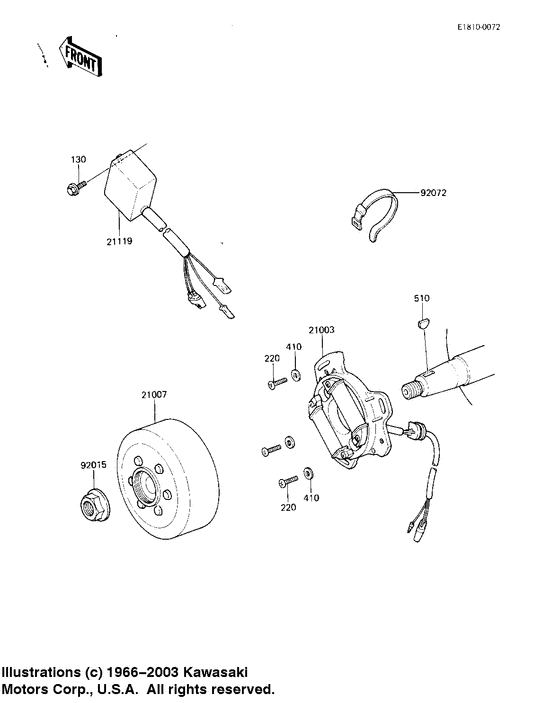

Ignition/generator (Kdx80-b3) Diagram Kawasaki KDX80
- Year
- 1982
- Model code
- KDX80-B2
- Sales region
- USA
- Engine Capacity
- 80
- Model
- KDX80-B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0616 BOLT-FLANGED,6X16Bolt-flanged,6x16; |
130G0616 |
from US $0.61 |
||
| replacement | |||||
|
130
|
130
130BA0616 BOLT-FLANGED,6X16Bolt-flanged,6x16; |
130BA0616 |
from US $0.79 |
||
|
220
|
220
220B0514
SCREW-PAN-CROS
|
220B0514 |
— | ||
| replacement | |||||
|
220
|
220
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
410
|
410
410B0500
W-PLAIN-S
Washer plain 5mm; |
410B0500 |
— | ||
| replacement | |||||
|
410
|
410
410AA0500 W-PLAIN-SWasher plain 5mm; |
410AA0500 |
from US $0.78 |
||
|
510
|
510
510A3200 WOODRUFF KEYWoodruff key; |
510A3200 |
from US $3.40 |
||
|
21003
|
21003
21003-1239 STATOR |
21003-1239 |
US $290.11 |
||
|
21007
|
21007
21007-1018 ROTOR,MAGNETOFlywheel,magneto; |
21007-1018 |
US $327.31 |
||
| replacement | |||||
|
21007
|
21007
21007-1237 ROTOR,MAGNETOFlywheel,magneto; |
21007-1237 |
from US $327.31 |
||
|
21119
|
21119
21119-1115 IGNITER |
21119-1115 |
from US $305.98 |
||
|
92015
|
92015
92015-1415 NUT,10MMNut,10mm; |
92015-1415 |
from US $3.54 |
||
|
92072
|
92072
92072-056 BAND,WIRING HARNESSBand,wiring harness; |
92072-056 |
from US $3.17 |
||
