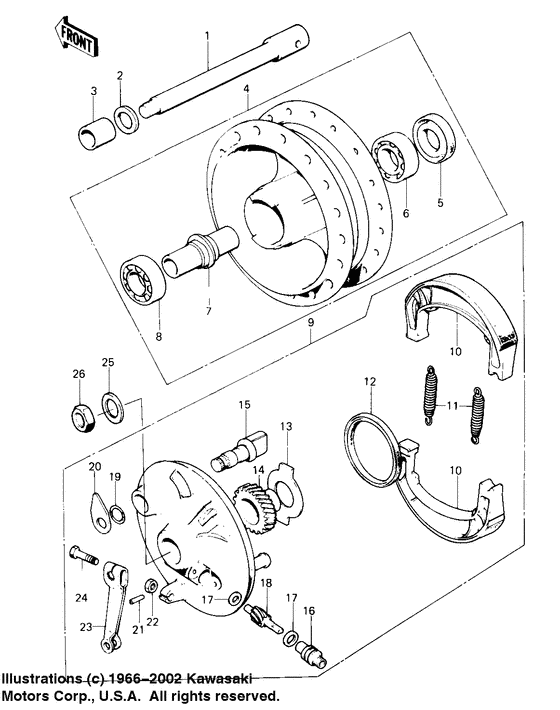

Front hub/brake Diagram Kawasaki KE100
- Year
- 1981
- Model code
- KE100-A10
- Sales region
- USA
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41068039 AXLE,FRAxle-front; |
41068039 |
US $23.71 |
||
| replacement | |||||
|
1
|
1
41068-1359 AXLE,FRAxle-front; |
41068-1359 |
US $23.71 |
||
|
2
|
2
41042-002 DUST SHIELD FRNT DRUMKe100-a5/a6, ke100-a7/a8/a9/a10 |
41042-002 |
US $3.11 |
||
|
3
|
3
41069-002 COLLAR FRONT HUB R.HKe100-a5/a6, ke100-a7/a8/a9/a10 |
41069-002 |
US $6.91 |
||
|
4
|
4
41034-1040 DRUM-ASSY,FR BRKDrum-assy,fr brk; Ke100-a5/a6, ke100-a7/a8/a9/a10 |
41034-1040 |
US $199.60 |
||
|
5
|
5
92050-063 OIL SEAL,TC17317Oil seal,tc17317; |
92050-063 |
from US $7.93 |
||
|
6
|
6
601B6200
BEARING BALL #6200
|
601B6200 |
— | ||
|
7
|
7
41039002 SPACER FRONT HUBSpacer front hub; |
41039002 |
US $8.93 |
||
|
8
|
8
601B6300Z BEARING BALL #6300Z |
601B6300Z |
from US $9.65 |
||
|
9
|
9
41035-071-80 PANEL,ASSY,FR. BRK.Panel-asy,fr brk buff; |
41035-071-80 |
US $274.46 |
||
| replacement | |||||
|
9
|
9
41035-1331 PANEL,ASSY,FR. BRK.Panel-asy,fr brk buff; |
41035-1331 |
US $274.46 |
||
|
10
|
10
41048-1085 SHOE-BRAKE |
41048-1085 |
from US $35.72 |
||
|
11
|
11
92081-1766 SPRING,BRAKE SHOESpring,brake shoe; |
92081-1766 |
from US $5.39 |
||
|
12
|
12
92050-002 OIL SEAL BRAKE PANELOil seal brake panel; |
92050-002 |
from US $7.93 |
||
|
13
|
13
41064010 RECEIVER,SPEED GEARReceiver,speed gear; |
41064010 |
from US $6.06 |
||
|
14
|
14
41059022 GEAR,SPEEDOMETERGear,speedometer; |
41059022 |
US $30.92 |
||
|
15
|
15
41050018 CAM SHAFT-FRONT BRAKECam shaft-front brake; |
41050018 |
from US $19.76 |
||
|
16
|
16
41062005 BUSH,SPEEDMETER CABLEBush,speedmeter cable; |
41062005 |
from US $14.89 |
||
|
17
|
17
41063001 WASHER THRST SPD PINIWasher thrst spd pini; |
41063001 |
from US $3.17 |
||
|
18
|
18
41060004 PINION SPEEDOMETERPinion speedometer; Ke100-a5/a6, ke100-a7/a8/a9/a10 |
41060004 |
from US $17.03 |
||
|
19
|
19
92055-004 0 RING,11MM"0" ring,11mm; |
92055-004 |
from US $3.17 |
||
|
20
|
20
41085008 INDICATOR,BK SHOEIndicator,bk shoe; |
41085008 |
US $9.01 |
||
|
21
|
21
41082001 PIN,SPRINGPin,spring; |
41082001 |
from US $3.01 |
||
|
22
|
22
41072007 NUT,6MMNut,6mm; |
41072007 |
from US $2.85 |
||
|
23
|
23
41053005 LEVER FRONT BRAKE CAMLever front brake cam; |
41053005 |
from US $10.27 |
||
|
24
|
24
112G0630
BOLT-UPSET
|
112G0630 |
— | ||
| replacement | |||||
|
24
|
24
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
25
|
25
411B1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411B1000 |
from US $1.26 |
||
| replacement | |||||
|
25
|
25
411AA1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411AA1000 |
from US $0.72 |
||
|
26
|
26
42045005 NUT 10MMNut 10mm; |
42045005 |
from US $4.67 |
||
