	Description	OEM Part #	Price
1	1 14038035 CAP,CARBURETOR Cap,carburetor;	14038035	from US $9.01
2	2 16147001 PLUG,CARBURETOR CAP Plug,carburetor cap;	16147001	from US $3.31
3	3 92081-047 SPRING COIL Spring coil;	92081-047	from US $7.29
4	4 92071-1024 GROMMET,OVERFLOW Grommet,overflow;	92071-1024	—
5	5 16001-1185 CARBURETOR ASSY	16001-1185	—
6	6 16002-1004 CABLE ADJUSTER	16002-1004	US $4.52
7	7 92015-1092 NUT,CABLE ADJSTR LOCK Nut,cable adjstr lock;	92015-1092	US $2.66
8	8 16021-1021 THROTTLE ADJUSTER	16021-1021	US $10.69
9	9 92081-1232 SPRING,THROTTLE ADJST Spring,throttle adjst;	92081-1232	US $1.17
10	10 16004-1007 CAP,MIXING CHAMBER Cap,mixing chamber;	16004-1007	US $6.66
11	11 16005-1010 TOP,MIXING CHAMBER Top,mixing chamber;	16005-1010	US $7.83
12	12 92081-1234 SPRING,THROTTLE VALVE Spring,throttle valve;	92081-1234	US $2.32
13	13 13169-1223 SPRING SEAT,THR VALVE Spring seat,thr valve;	13169-1223	US $6.57
14	14 92037-1167 CIRCLIP	92037-1167	US $3.33
15	15 16009-1043 JET NEEDLE,#4D21 Jet needle,#4d21;	16009-1043	US $38.30
16	16 16025-1036 VALVE,THROTTLE CA.3.0 Valve,throttle ca.3.0;	16025-1036	US $84.94
17	17 550D1210 PIN COTTER 1.2X10 Pin cotter 1.2x10;	550D1210	—
	replacement
17	17 550AA1210 PIN-COTTER,1.2X10 Pin cotter 1.2x10;	550AA1210	from US $1.12
18	18 46102-1014 ROD,THR VALVE STOP Rod,thr valve stop;	46102-1014	US $2.84
19	19 92037-1166 CLAMP	92037-1166	US $1.17
20	20 16012-1007 CAP,STARTER PLUNGER Cap,starter plunger;	16012-1007	US $17.75
21	21 92081-1233 SPRING,STARTER PLUNGR Spring,starter plungr;	92081-1233	US $4.16
22	22 16016-1010 PLUNGER,STARTER Plunger,starter;	16016-1010	US $33.73
23	23 16014-1022 SCREW,PILOT AIR ADJST Screw,pilot air adjst;	16014-1022	US $12.64
24	24 92081-1202 SPRING,PILOT AIR SCRW Spring,pilot air scrw;	92081-1202	US $2.93
25	25 92001-1304 BOLT,CARB MOUNT Bolt,carb mount;	92001-1304	US $4.16
26	26 220B0308 SCREW PAN HEAD 3X8 Screw pan head 3x8;	220B0308	—
	replacement
26	26 220AA0308 SCREW-PAN-CROS Screw pan head 3x8;	220AA0308	from US $0.79
27	27 11009-1174 GASKET,FLOAT CHAMBER Gasket,float chamber;	11009-1174	—
	replacement
27	27 11060-1617 GASKET Gasket,float chamber;	11060-1617	—
28	28 11009-1160 GASKET,FLOAT VALVE Gasket,float valve;	11009-1160	from US $3.89
29	29 16031-1010 FLOAT VALVE ASSY	16031-1010	US $61.02
30	30 16017-1043 NEEDLE JET,#80 Needle jet,#80;	16017-1043	US $19.84
31	31 92022-1167 WASHER,PLAIN Washer,plain;	92022-1167	US $3.33
32	32 92063-1045 MAIN JET,#82 Main jet,#82; Std	92063-1045	—
33	33 92064-1027 PILOT JET,#38 Pilot jet,#38;	92064-1027	US $13.01
34	34 92043-1066 PIN	92043-1066	US $18.05
35	35 16031-1009 FLOAT	16031-1009	US $84.31
36	36 220B0414 SCREW-PAN-CROS	220B0414	—
	replacement
36	36 220AA0414 SCREW-PAN-CROS	220AA0414	from US $1.07
37	37 92077-022 KNOB,CARBURETOR Knob,carburetor;	92077-022	US $6.38
38	38 550D1615 PIN COTTER 1.6X15 Pin cotter 1.6x15;	550D1615	—
	replacement
38	38 550AA1615 PIN-COTTER,1.6X15 Pin cotter 1.6x15;	550AA1615	from US $0.72
39	39 461F0400 WASHER-SPRING Washer spring 4mm;	461F0400	—
	replacement
39	39 461DA0400 WASHER-SPRING Washer spring 4mm;	461DA0400	from US $0.78
40	40 92027-1236 RING,JET NEEDLE Ring,jet needle;	92027-1236	US $2.41
41	41 461F0300 WASHER SPRING 3MM Washer spring 3mm;	461F0300	—
	replacement
41	41 461DA0300 WASHER-SPRING Washer spring 3mm;	461DA0300	from US $0.78
42	42 92081-1203 SPRING,JET NEEDLE Spring,jet needle;	92081-1203	US $2.66
43	43 92066-1051 PLUG,PILOT SCREW Plug,pilot screw;	92066-1051	from US $3.17
44	44 16073-1010 INSULATOR,CARBURETOR Insulator,carburetor;	16073-1010	US $15.77
45	45 92093-1060 SEAL,INSULATOR Seal,insulator;	92093-1060	—
46	46 16020-1003 CHAMBER-FLOAT	16020-1003	US $59.04

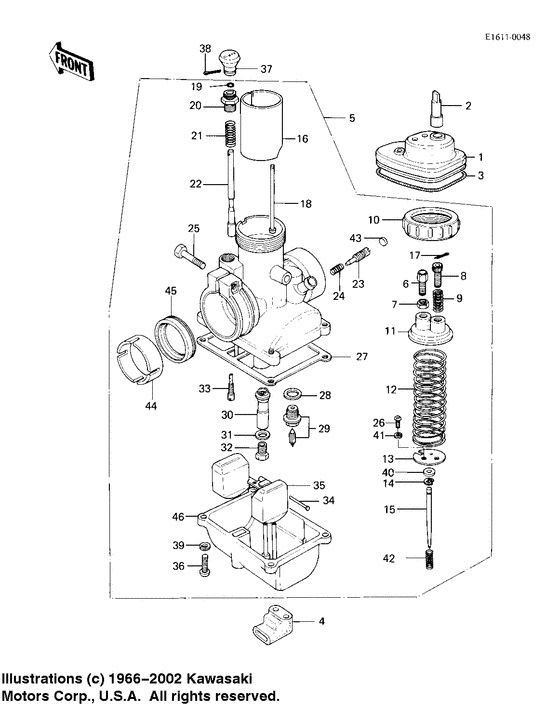

Carburetor (Ke100-a9/a10) Diagram Kawasaki KE100 USA 10382490-683279

Carburetor (Ke100-a9/a10) Diagram Kawasaki KE100 USA 10382490-683279
