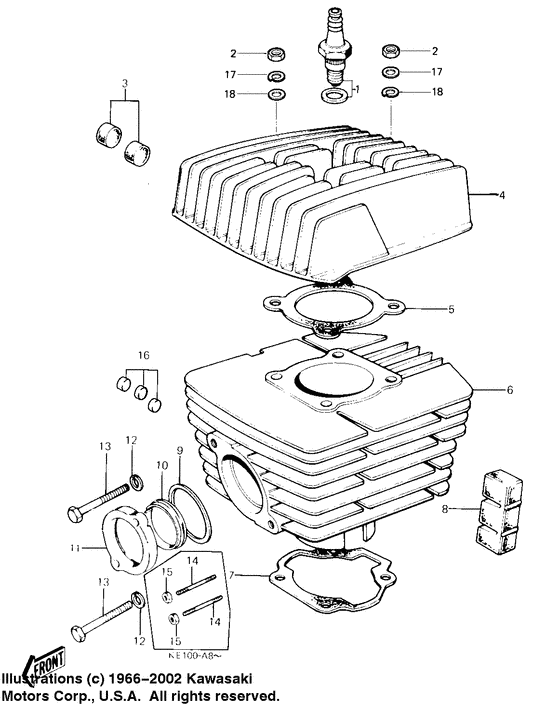

Cylinder head/cylinder Diagram Kawasaki KE100
- Year
- 1976
- Model code
- KE100-A5
- Sales region
- USA
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92070-010 SPARK PLUGS B8HCKe100-a5/a6, ke100-a7/a8/a9/a10 |
92070-010 |
US $10.30 |
||
| replacement | |||||
|
1
|
1
B8HS
SPARK PLUG B8HS
Ke100-a5/a6, ke100-a7/a8/a9/a10 |
B8HS |
— | ||
|
2
|
2
311B0800
Nut,8mm
Nut,8mm; Ke100-a5/a6, ke100-a7/a8/a9/a10 |
311B0800 |
— | ||
| replacements | |||||
|
2
|
2
317AA0800 NUT-HEX-SMALLNut,8mm; Ke100-a5/a6, ke100-a7/a8/a9/a10 |
317AA0800 |
from US $0.94 |
||
|
2
|
2
311AA0800 NUT-HEX-SMALLNut,8mm; Ke100-a5/a6, ke100-a7/a8/a9/a10 |
311AA0800 |
US $0.40 |
||
|
3
|
3
92075-074 DAMPER RUBBERKe100-a5/a6, ke100-a7/a8/a9/a10 |
92075-074 |
US $3.82 |
||
|
4
|
4
11001-075-21
CYLINDER HEAD,BLACK
Cylinder head,black; Ke100-a5/a6, ke100-a10, ke100-a7/a8, ke100-a9 |
11001-075-21 |
— | ||
|
5
|
5
11004033 GASKET CYLINDER HEADGasket cylinder head; |
11004033 |
from US $13.06 |
||
|
6
|
6
11005-1027
CYLINDER,BLACK
Cylinder,black; Ke100-a5/a6, ke100-a7, ke100-a9, ke100-a8/a10 ke100-a9 (canada) |
11005-1027 |
— | ||
|
7
|
7
11060-1200 GASKET,CYLINDER BASEGasket,cylinder base; |
11060-1200 |
from US $5.60 |
||
|
8
|
8
92075-170 DAMPER RUBBER,CYLINDDamper rubber,cylind; Ke100-a5/a6/a7 |
92075-170 |
from US $2.86 |
||
|
9
|
9
11009-1992 GASKET,EXHAUST PIPEGasket,exhaust pipe; |
11009-1992 |
from US $6.34 |
||
|
10
|
10
18070008 INSERT,EXH PIPE HLDRInsert,exh pipe hldr; |
18070008 |
US $9.86 |
||
|
11
|
11
18069048 HOLDER,EXHAUST PIPEHolder,exhaust pipe; |
18069048 |
US $41.72 |
||
|
12
|
12
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; Ke100-a5/a6/a7 |
461F0600 |
— | ||
| replacement | |||||
|
12
|
12
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; Ke100-a5/a6/a7 |
461DA0600 |
from US $0.55 |
||
|
13
|
13
112G0625
BOLT-UPSET,6X25
Ke100-a5/a6/a7 |
112G0625 |
— | ||
| replacement | |||||
|
13
|
13
112BA0625 BOLT-UPSET,6X25Ke100-a5/a6/a7 |
112BA0625 |
from US $1.07 |
||
|
14
|
14
92004-029 STUDKe100-a8/a9/a10 |
92004-029 |
US $4.19 |
||
| replacement | |||||
|
14
|
14
92004-1119 STUD,6X22.5Ke100-a8/a9/a10 |
92004-1119 |
from US $3.64 |
||
|
15
|
15
92017-014 NUT,LOCK 6MMNut,lock 6mm; Ke100-a8/a9/a10, ke100-a8/a9/a10 |
92017-014 |
from US $4.95 |
||
|
16
|
16
92075-109 DAMPER RUBBER-CYL-HDDamper rubber-cyl-hd; Ke100-a7/a8/a9/a10 |
92075-109 |
US $2.65 |
||
|
17
|
17
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; Ke100-a5/a6 |
461F0800 |
— | ||
| replacement | |||||
|
17
|
17
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; Ke100-a5/a6 |
461DA0800 |
from US $0.48 |
||
|
18
|
18
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; Ke100-a5/a6 |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
18
|
18
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; Ke100-a5/a6 |
410AA0800 |
from US $0.63 |
||
