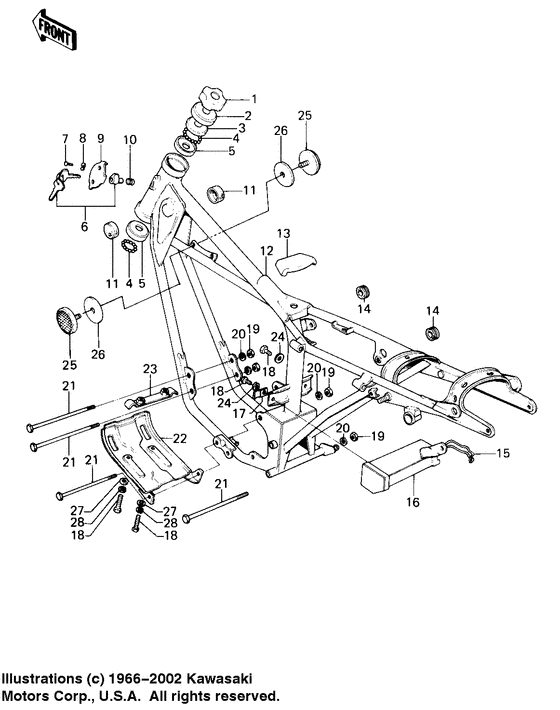

Frame/frame fittings Diagram Kawasaki KE100
- Year
- 1976
- Model code
- KE100-A5
- Sales region
- USA
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92090-006 NUT STEERING STEM LCK |
92090-006 |
from US $10.67 |
||
|
2
|
2
46098004 CAP STEERING STEMCap steering stem; |
46098004 |
from US $4.59 |
||
|
3
|
3
92047-005 CONE UPPER BEARINGCone upper bearing; |
92047-005 |
from US $8.09 |
||
|
4
|
4
600A0600 BALL STEEL 3/16'Ball steel 3/16'; |
600A0600 |
from US $0.79 |
||
|
5
|
5
92048-004
RACE BEARING
Race bearing; |
92048-004 |
— | ||
|
6
|
6
27016042 LOCK ASSY,STEERINGLock assy,steering; |
27016042 |
from US $30.64 |
||
|
7
|
7
92008-007 SCREW-TAPPINGScrew-tapping; |
92008-007 |
from US $3.73 |
||
|
8
|
8
92097-003 WASHER |
92097-003 |
from US $3.17 |
||
|
9
|
9
11012-1134 CAP,STEERING LOCKCap,steering lock; |
11012-1134 |
from US $5.07 |
||
|
10
|
10
27032001 SPRING-STEERING LOCKSpring-steering lock; |
27032001 |
from US $3.37 |
||
|
11
|
11
92075-101 DAMPER RUBBER-FL TANKDamper rubber-fl tank; |
92075-101 |
from US $4.44 |
||
|
12
|
12
32002-137 FRAMEKe100-a5/a6/a7, ke100-a8/a9, ke100-a10 |
32002-137 |
US $585.85 |
||
|
13
|
13
92075-106 DAMPER RUBBER-FL TANKDamper rubber-fl tank; |
92075-106 |
from US $9.01 |
||
|
14
|
14
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
15
|
15
92079-002 FASTENER-TOOL CASEFastener-tool case; |
92079-002 |
from US $8.09 |
||
|
16
|
16
32098018 CASE-TOOL |
32098018 |
US $71.19 |
||
|
17
|
17
92037-070 CLAMP-BREATHER PIPE |
92037-070 |
US $2.11 |
||
|
18
|
18
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
18
|
18
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
18
|
18
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
19
|
19
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
19
|
19
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
20
|
20
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
20
|
20
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
21
|
21
92001-1603 BOLT,FLANGED,10X115Bolt,flanged,10x115; |
92001-1603 |
from US $6.22 |
||
|
22
|
22
55011018 GUARD,ENGINEGuard,engine; |
55011018 |
from US $24.11 |
||
|
23
|
23
55016007 BRACKET,ENGINE GUARDBracket,engine guard; |
55016007 |
US $12.46 |
||
|
24
|
24
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
24
|
24
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
25
|
25
28012-009 REFLECTOR,REFLEX,REARReflector,reflex,rear; |
28012-009 |
from US $15.39 |
||
|
26
|
26
92094-011 DAMPER RUBBER,REFLECTDamper rubber,reflect; |
92094-011 |
from US $2.65 |
||
|
27
|
27
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
27
|
27
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
28
|
28
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
28
|
28
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
