Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 23003-024 LAMP UNIT,HEAD Lamp unit,head;	23003-024	—
2	2 23013-007 SCREW SET,LENS UNIT Screw set,lens unit;	23013-007	—
3	3 23006-042 RIM,HEAD LAMP Rim,head lamp;	23006-042	—
4	4 23013-5001 SCREW ASSY,FOCUS AJST Screw assy,focus ajst;	23013-5001	—
5	5 23019025 SCREW-PAN-CROS Screw,pan head,5x14;	23019025	—
	replacements
5	5 220AA0512 SCREW-PAN-CROS Screw,pan head,5x14;	220AA0512	from US $0.78
5	5 92172-0145 SCREW,5X14 Screw,pan head,5x14;	92172-0145	from US $0.95
6	6 23072002 RETAINER,SEALED BEAM Retainer,sealed beam;	23072002	—
7	7 23009015 CLAMP,HEAD LAMP LENS Clamp,head lamp lens;	23009015	from US $3.43
8	8 23007-055 SEALED BEAM UNIT Sealed beam unit; 1	23007-055	—
9	9 23008044 SOCKET ASSY,HD LIGHT Socket assy,hd light; Ke100-a5/a6, ke100-a7/a8/a9/a10	23008044	—
10	10 23081001 COVER,HD LAMP SOCKET Cover,hd lamp socket;	23081001	—
11	11 23005-049-21 BODY,HEAD LAMP,BLACK Body,head lamp,black;	23005-049-21	—
12	12 314B1000 NUT-HEX-FINE Nut,10mm;	314B1000	—
	replacement
12	12 314AA1000 NUT-HEX-FINE Nut,10mm;	314AA1000	from US $1.01
13	13 461F1000 WASHER SPRING 10MM Washer spring 10mm;	461F1000	US $0.95
	replacement
13	13 461DA1000 WASHER-SPRING Washer spring 10mm;	461DA1000	from US $0.90
14	14 23066011 DAMPER RUBBER	23066011	US $3.62
15	15 23052005 COLLAR	23052005	from US $9.01
16	16 411D1000 WASHER Washer-plain,10mm;	411D1000	US $33.50
	replacement
16	16 92200-1313 WASHER Washer-plain,10mm;	92200-1313	from US $3.33
17	17 92007-041 BOLT,HEX HEAD,10X30 Bolt,hex head,10x30;	92007-041	—

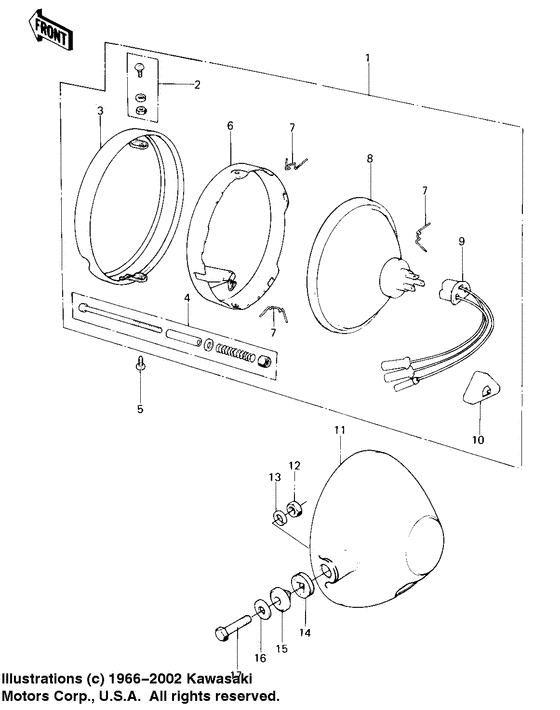

Headlight Diagram Kawasaki KE100 USA 10382591-683281
