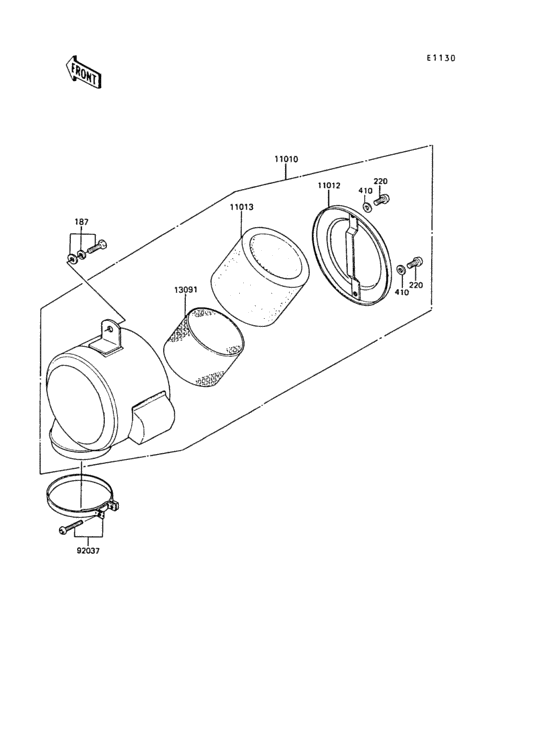

Air cleaner Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187C0612 BOLT-UPSET-WSP |
187C0612 |
from US $1.43 |
||
| replacement | |||||
|
187
|
187
187AB0612 BOLT-UPSET-WSP |
187AB0612 |
from US $1.24 |
||
|
220
|
220
220AA0608 SCREW-PAN-CROS |
220AA0608 |
from US $0.92 |
||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
11010
|
11010
11010-1124
FILTER-ASSY-AIR
|
11010-1124 |
— | ||
|
11012
|
11012
11012-1187 CAP,AIR FILTER,F.BLAC |
11012-1187 |
US $24.28 |
||
|
11013
|
11013
11013029 ELEMENT,AIR,CLNR |
11013029 |
from US $8.55 |
||
|
13091
|
13091
11014004
HOLDER-CLNR. ELEMENT
|
11014004 |
— | ||
|
92037
|
92037
92037-068 CLAMP-AIR CLEANER |
92037-068 |
from US $8.24 |
||
