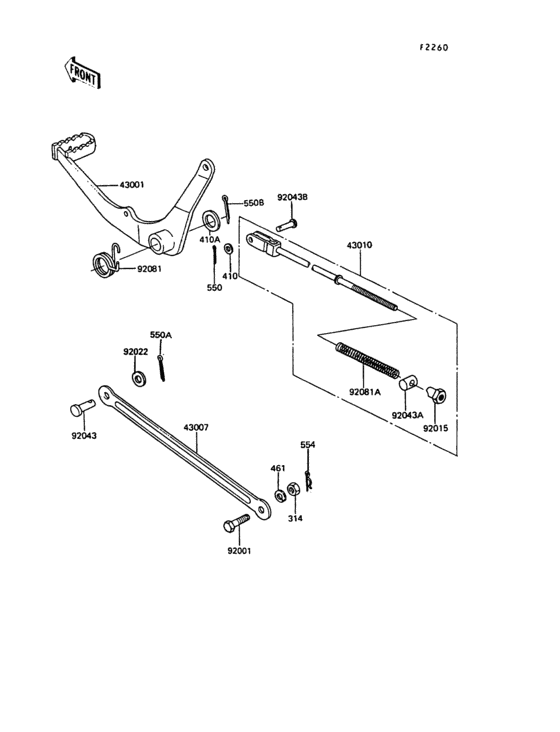

Brake pedal Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
314
|
314
314AB1000 NUT-HEX-FINE,10MM,BLA |
314AB1000 |
US $1.09 |
||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
410A
|
410A
410F1400 WASHER-PLAIN-SMALL,14 |
410F1400 |
US $3.13 |
||
| replacement | |||||
|
410A
|
410A
410AB1400 WASHER-PLAIN-SMALL,14 |
410AB1400 |
from US $0.94 |
||
|
461
|
461
461DB1000 WASHER-SPRING,10MM |
461DB1000 |
from US $1.09 |
||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
550A
|
550A
550AA2515 PIN-COTTER,2.5X15 |
550AA2515 |
from US $0.78 |
||
|
550B
|
550B
550AA3030 PIN-COTTER,3.0X30 |
550AA3030 |
from US $0.95 |
||
|
554
|
554
554DA0800 PIN-SNAP |
554DA0800 |
from US $0.63 |
||
|
43001
|
43001
43001056 PEDAL,BRAKE |
43001056 |
US $49.99 |
||
|
43007
|
43007
43007028 TORQUE LINK-RR BRAKE |
43007028 |
US $11.47 |
||
|
43010
|
43010
43010-5001 BRAKE ROD ASSY |
43010-5001 |
US $20.03 |
||
| replacements | |||||
|
43010
|
43010
43011-022 ROD-BRAKE |
43011-022 |
from US $9.52 |
||
|
43010
|
43010
43012001 SPRING,BRAKE ROD |
43012001 |
from US $3.33 |
||
|
43010
|
43010
92015-042 NUT-BRAKE ROD ADJUST |
92015-042 |
from US $3.48 |
||
|
43010
|
43010
92043-0147 PIN,BRAKE ROD |
92043-0147 |
from US $3.17 |
||
|
92001
|
92001
92150-1872 BOLT,10X32 |
92150-1872 |
from US $4.12 |
||
|
92015
|
92015
92015-042 NUT-BRAKE ROD ADJUST |
92015-042 |
from US $3.48 |
||
|
92022
|
92022
410AA1000 W-PLAIN-S |
410AA1000 |
from US $0.81 |
||
|
92043
|
92043
43009001 PIN REAR TORQUE LINK |
43009001 |
from US $4.91 |
||
|
92043A
|
92043A
92043-039
PIN,BRAKE ROD
|
92043-039 |
— | ||
| replacement | |||||
|
92043A
|
92043A
92043-0147 PIN,BRAKE ROD |
92043-0147 |
from US $3.17 |
||
|
92043B
|
92043B
92043-125 PIN |
92043-125 |
from US $3.96 |
||
|
92081
|
92081
43005007 SPRING BRAKE PEDAL |
43005007 |
US $5.45 |
||
|
92081A
|
92081A
43012001 SPRING,BRAKE ROD |
43012001 |
from US $3.33 |
||
