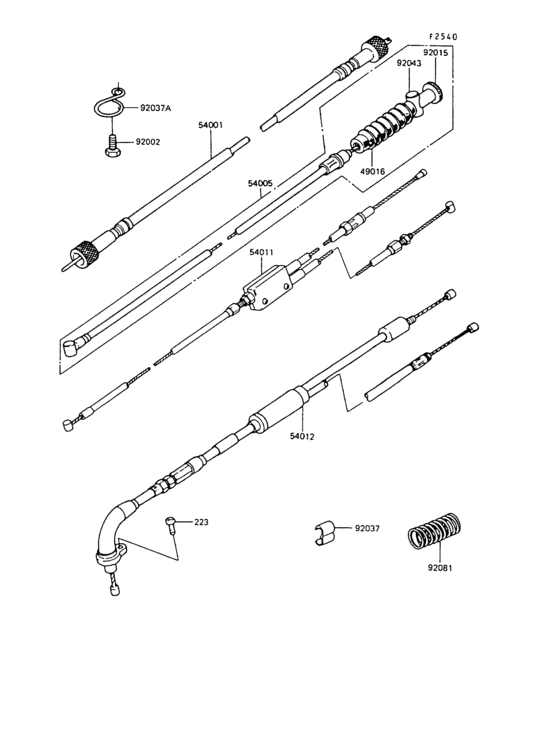

Cables Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223AB0510 SCREW-PAN-WS-CROS |
223AB0510 |
from US $0.95 |
||
|
49016
|
49016
54009008 DUST COVER-BRKE CABLE |
54009008 |
from US $3.43 |
||
|
54001
|
54001
54001-032
CABLE,SPEEDOMETER
|
54001-032 |
— | ||
|
54005
|
54005
54005-1035
CABLE-BRAKE
|
54005-1035 |
— | ||
|
54011
|
54011
54011-1054
CABLE-CLUTCH
|
54011-1054 |
— | ||
|
54012
|
54012
54012-1104
CABLE-THROTTLE
|
54012-1104 |
— | ||
|
92002
|
92002
186AA0612 BOLT-UPSET-WP |
186AA0612 |
US $0.56 |
||
|
92015
|
92015
92015-052 NUT-BRAKE ROD ADJUST |
92015-052 |
from US $7 |
||
|
92037
|
92037
92037-069
CLAMP-CABLE
|
92037-069 |
— | ||
|
92037A
|
92037A
92037-046
CLAMP-CABLE
|
92037-046 |
— | ||
|
92043
|
92043
92043-082 JOINT-BRAKE ROD |
92043-082 |
from US $3.11 |
||
|
92081
|
92081
54025004 SPRING,COIL |
54025004 |
from US $8.87 |
