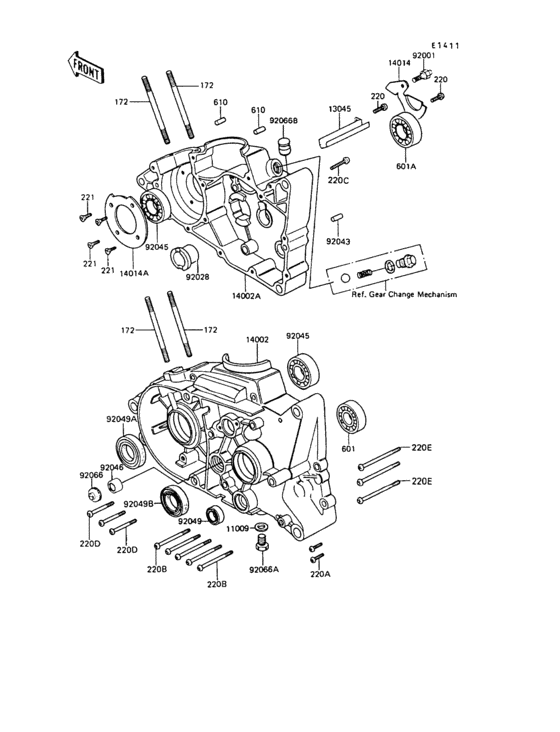

Crankcase Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
172
|
172
172BA08120 STUD,8X120 |
172BA08120 |
US $3.17 |
||
|
220
|
220
220AA0612 SCREW-PAN-CROSS,6X12 |
220AA0612 |
from US $0.91 |
||
|
220A
|
220A
220AA0625 SCREW-PAN-CROSS,6X25 |
220AA0625 |
from US $0.95 |
||
|
220B
|
220B
220AA0640 SCREW-PAN HEAD,6X40 |
220AA0640 |
from US $0.95 |
||
|
220C
|
220C
220AD0620 SCREW-PAN-CROS |
220AD0620 |
from US $1.09 |
||
|
220D
|
220D
220X0660 SCREW-PAN-CROS |
220X0660 |
US $3.40 |
||
| replacement | |||||
|
220D
|
220D
220AD0660 SCREW-PAN-CROS |
220AD0660 |
from US $1.09 |
||
|
220E
|
220E
220X0665 SCREW-PAN-CROS |
220X0665 |
US $3.40 |
||
| replacement | |||||
|
220E
|
220E
220AD0665 SCREW-PAN-CROS |
220AD0665 |
from US $1.24 |
||
|
221
|
221
221AA0616 SCREW-CSK-CROS |
221AA0616 |
from US $0.92 |
||
|
601
|
601
601B6004 BEARING BALL #6004 |
601B6004 |
from US $8.93 |
||
|
601A
|
601A
601B6005 BEARING BALL #6005 |
601B6005 |
from US $10.93 |
||
|
610
|
610
610A0512 PIN DOWEL 5X12 |
610A0512 |
from US $0.94 |
||
|
11009
|
11009
92065-058 GASKET |
92065-058 |
from US $3.37 |
||
|
13045
|
13045
13045-1003 RECEIVER-OIL |
13045-1003 |
from US $4.51 |
||
|
14002
|
14002
14002-1151
Crankcase,lh
|
14002-1151 |
— | ||
|
14002A
|
14002A
14002-1211
Crankcase,rh
|
14002-1211 |
— | ||
|
14014
|
14014
14014008 HOLDER BEARING MSSON |
14014008 |
from US $4.35 |
||
|
14014A
|
14014A
14014017 HOLDER CRANKSHAFT BRG |
14014017 |
from US $4.67 |
||
|
92001
|
92001
92001-1426 BOLT,CRANK BRG HOLDER |
92001-1426 |
from US $5.44 |
||
|
92028
|
92028
92139-0210 BUSHING,14X20X14 |
92139-0210 |
from US $17.27 |
||
|
92043
|
92043
92043-1322 PIN DOWEL 8X16 |
92043-1322 |
from US $0.74 |
||
| replacement | |||||
|
92043
|
92043
551A0816 PIN DOWEL 8X16 |
551A0816 |
US $0.74 |
||
|
92045
|
92045
92045-1032 BEARING-BALL,#6204 |
92045-1032 |
from US $20.94 |
||
|
92046
|
92046
92046-0043 BEARING-NEEDLE,HK1412 |
92046-0043 |
from US $13.94 |
||
|
92049
|
92049
92049-004 OIL SEAL SB12205 |
92049-004 |
from US $5.28 |
||
|
92049A
|
92049A
92049-1481 SEAL-OIL |
92049-1481 |
from US $9.65 |
||
|
92049B
|
92049B
92050-013 OIL SEAL SC25376 |
92050-013 |
from US $8.87 |
||
|
92066
|
92066
92066-1071 PLUG |
92066-1071 |
from US $9.17 |
||
|
92066A
|
92066A
92067-001 PLUG, OIL DRAIN |
92067-001 |
from US $3.73 |
||
|
92066B
|
92066B
92074-035 RUBBER PLUG |
92074-035 |
from US $3.57 |
||
