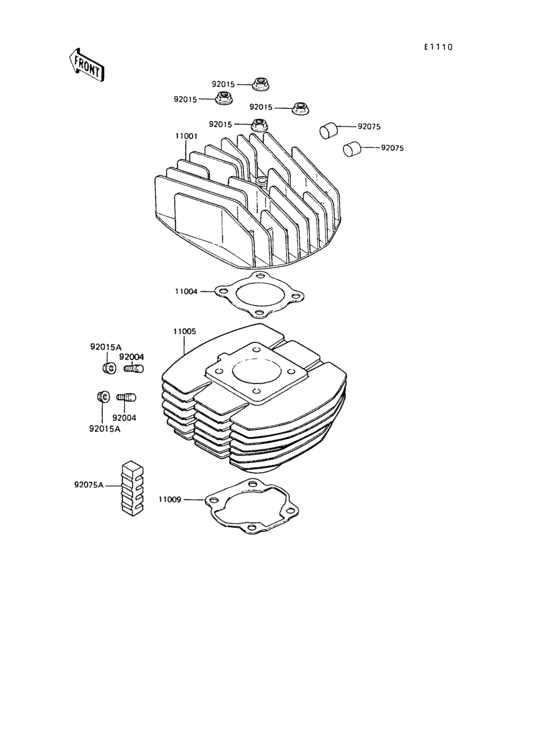

Cylinder head/cylinder Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11001
|
11001
11001-1102
Head-cylinder
|
11001-1102 |
— | ||
|
11004
|
11004
11004033 GASKET CYLINDER HEAD |
11004033 |
from US $13.06 |
||
|
11005
|
11005
11005-1164 CYLINDER ENGINE |
11005-1164 |
US $473.33 |
||
|
11009
|
11009
11060-1200 GASKET,CYLINDER BASE |
11060-1200 |
from US $5.60 |
||
|
92004
|
92004
92004-1119 STUD,6X22.5 |
92004-1119 |
from US $3.64 |
||
|
92015
|
92015
92015-1022 NUT-8MM |
92015-1022 |
from US $0.82 |
||
|
92015A
|
92015A
92015-1365 NUT,6MM |
92015-1365 |
from US $4.09 |
||
|
92075
|
92075
92075-1338
Damper,cylinder
|
92075-1338 |
— | ||
|
92075A
|
92075A
92075-1172 DAMPER |
92075-1172 |
from US $2.65 |
||
| replacement | |||||
|
92075A
|
92075A
92075-1339 DAMPER |
92075-1339 |
from US $2.93 |
||
