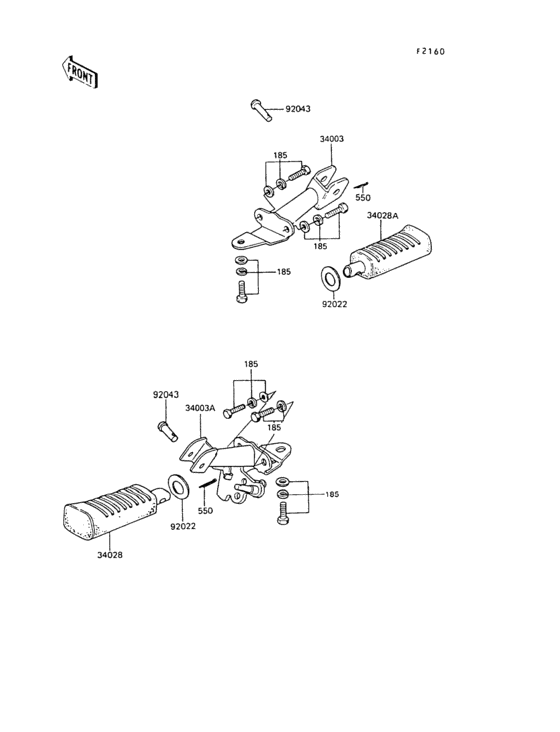

Footrests Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
185
|
185
185BB0818 BOLT-UPSET-WSP-SMALL |
185BB0818 |
US $1.24 |
||
|
550
|
550
550AA2515 PIN-COTTER,2.5X15 |
550AA2515 |
from US $0.78 |
||
|
34003
|
34003
34003050 HOLDER,FOTREST BAR,RH |
34003050 |
US $72.99 |
||
|
34003A
|
34003A
34003-1073 HOLDER-STEP |
34003-1073 |
US $126.50 |
||
|
34028
|
34028
34027-1114
STEP-ASSY,FR,LH
|
34027-1114 |
— | ||
|
34028A
|
34028A
34027-1115 STEP-ASSY,FR,RH |
34027-1115 |
US $45.31 |
||
|
92022
|
92022
92022-250 WASHER,PLAIN |
92022-250 |
from US $3.01 |
||
|
92043
|
92043
92043-080 PIN-FOOTREST BAR FIT |
92043-080 |
from US $3.33 |
