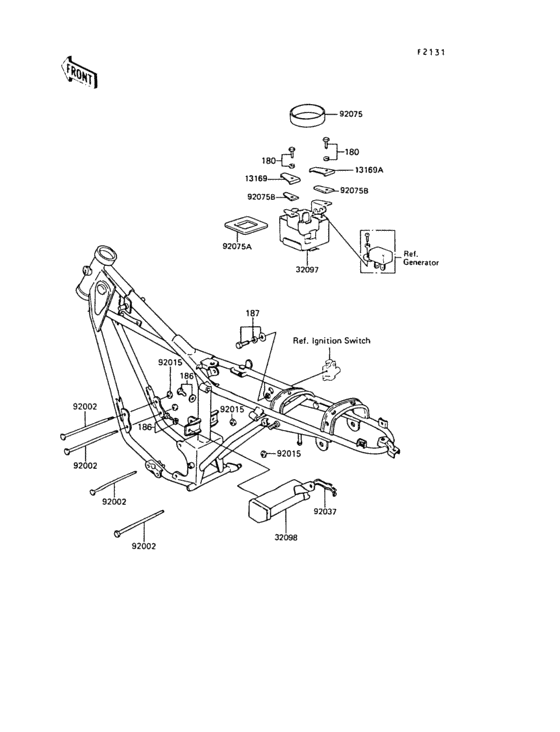

Frame fittings Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180B0618 BOLT-UPSET-WS |
180B0618 |
from US $0.61 |
||
| replacement | |||||
|
180
|
180
180AA0618 BOLT-UPSET-WS |
180AA0618 |
from US $1.09 |
||
|
186
|
186
186AA0614 BOLT-UPSET-WP |
186AA0614 |
from US $1.09 |
||
|
187
|
187
187AA0612 BOLT-UPSET-WSP |
187AA0612 |
from US $1.11 |
||
|
13169
|
13169
32101003 PLATE-BATTERY CASE,LH |
32101003 |
US $2.93 |
||
|
13169A
|
13169A
32101004 PLATE-BATTERY CASE,RH |
32101004 |
US $2.93 |
||
|
32097
|
32097
32097-1052 CASE, BATTERY |
32097-1052 |
US $46.57 |
||
|
32098
|
32098
32098018 CASE-TOOL |
32098018 |
US $71.19 |
||
|
92002
|
92002
92002-1072 BOLT,10X115 |
92002-1072 |
US $20.68 |
||
|
92015
|
92015
92015-1180 NUT,FLANGED,10MM,BLAC |
92015-1180 |
from US $2.69 |
||
|
92037
|
92037
92079-002 FASTENER-TOOL CASE |
92079-002 |
from US $8.09 |
||
|
92075
|
92075
32103018
MAT-BATTERY
|
32103018 |
— | ||
|
92075A
|
92075A
32103024 MAT-BATTERY |
32103024 |
US $5.24 |
||
|
92075B
|
92075B
92075-108
DAMPER RUBBER
|
92075-108 |
— | ||
