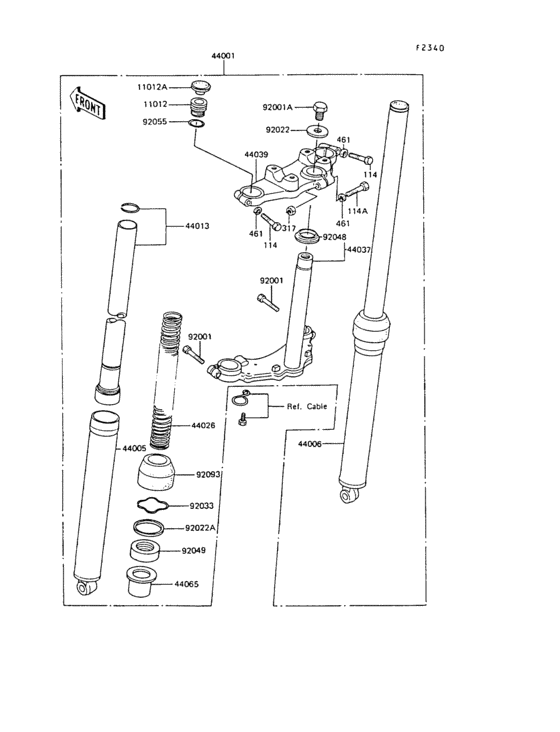

Front fork Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
114
|
114
115BA0835 BOLT,SMALL UPSET |
115BA0835 |
from US $1.09 |
||
|
114A
|
114A
115G0845
BOLT-SMALL-UPSET,8X45
|
115G0845 |
— | ||
| replacement | |||||
|
114A
|
114A
115BA0845 BOLT-SMALL-UPSET,8X45 |
115BA0845 |
from US $1.43 |
||
|
317
|
317
317AA0800 NUT-HEX-SMALL |
317AA0800 |
from US $0.94 |
||
|
461
|
461
461DA0800 WASHER-SPRING,8MM |
461DA0800 |
from US $0.48 |
||
|
11012
|
11012
11012-1126 GUIDE,SPRING |
11012-1126 |
US $12.67 |
||
|
11012A
|
11012A
11012-1127 CAP,FORK |
11012-1127 |
US $6.68 |
||
|
44001
|
44001
44001-1303 FORK-FRONT |
44001-1303 |
US $1,175.11 |
||
|
44005
|
44005
44005-1076 TUBE,LH,FORK OUTER |
44005-1076 |
US $174.01 |
||
|
44006
|
44006
44006-1075 TUBE,RH,FORK OUTER |
44006-1075 |
US $174.01 |
||
|
44013
|
44013
44013-1454 PIPE-FORK INNER |
44013-1454 |
US $170.01 |
||
|
44026
|
44026
44026-1120 SPRING-FRONT FORK |
44026-1120 |
from US $26.12 |
||
|
44037
|
44037
44037-1076 Holder-fork under |
44037-1076 |
US $255.49 |
||
|
44039
|
44039
44039047 HEAD-STEERING STEM |
44039047 |
US $168.46 |
||
|
44065
|
44065
44065-1014 BUSHING-FRONT FORK |
44065-1014 |
from US $15.55 |
||
|
92001
|
92001
92001-1269
BOLT,10X36
|
92001-1269 |
— | ||
| replacement | |||||
|
92001
|
92001
92150-1814
BOLT,10X36
|
92150-1814 |
— | ||
|
92001A
|
92001A
44041007 BOLT STRNG STEM HEAD |
44041007 |
US $14.89 |
||
|
92022A
|
92022A
92022-1241 WASHER,FRONT FORK OIL |
92022-1241 |
from US $3.57 |
||
|
92033
|
92033
92033-1038 RING-SNAP |
92033-1038 |
from US $2.85 |
||
|
92048
|
92048
92047-004 CONE LOWER BEARING |
92047-004 |
from US $11.98 |
||
|
92049
|
92049
92049-1049 OIL SEAL |
92049-1049 |
from US $11.51 |
||
|
92055
|
92055
92055-1087 O RING |
92055-1087 |
from US $3.57 |
||
|
92093
|
92093
92093-1065 SEAL,DUST |
92093-1065 |
from US $11.98 |
||
