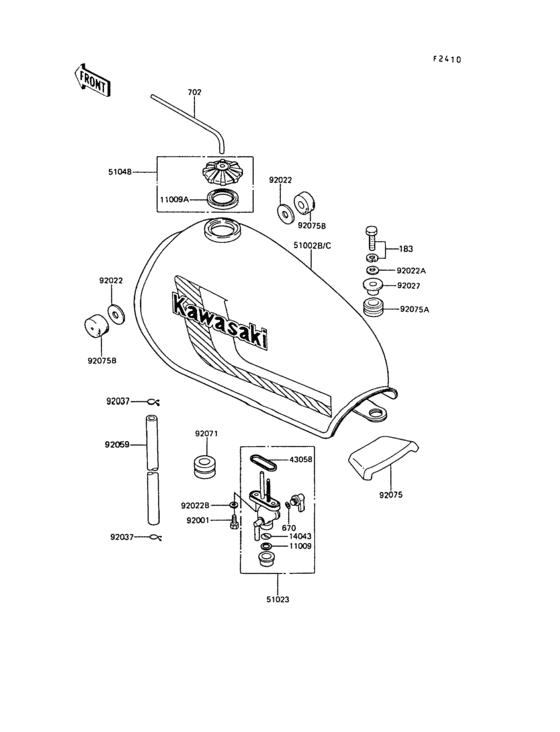

Fuel tank Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
183
|
183
183B0835 BOLT-UPSET-WS-SMALL |
183B0835 |
US $0.79 |
||
| replacement | |||||
|
183
|
183
183AA0835 BOLT-UPSET-WS-SMALL |
183AA0835 |
US $0.79 |
||
|
670
|
670
670B2010 0 RING, 10MM |
670B2010 |
from US $1.87 |
||
|
702
|
702
702A05400 TUBE-RUBBER 5X400 |
702A05400 |
from US $4.59 |
||
|
11009
|
11009
11009-1013 GASKET,FUEL TAP CUP |
11009-1013 |
from US $3.43 |
||
|
11009A
|
11009A
51059-006
GASKET,FUEL TANK CAP
|
51059-006 |
— | ||
|
14043
|
14043
14043-1002 STRINER,FUEL TAP |
14043-1002 |
from US $2.49 |
||
|
43058
|
43058
51039003 O RING |
51039003 |
from US $4.59 |
||
|
51002B
|
51002B
51003-5218-F1
TANK-COMP-FUEL,P.WHIT
|
51003-5218-F1 |
— | ||
|
51002C
|
51002C
51002-5284-7F
Tank-comp-fuel,l.gree
|
51002-5284-7F |
— | ||
|
51023
|
51023
51023-1020
TAP ASSY,FUEL
|
51023-1020 |
— | ||
|
51048
|
51048
51048-1004 CAP ASSY,TANK,FUEL |
51048-1004 |
US $27.08 |
||
|
92001
|
92001
92001-1091 BOLT,6X20,FUEL TAP |
92001-1091 |
from US $2.53 |
||
|
92022
|
92022
92022-044 WASHER-PL-10.5X26X2.3 |
92022-044 |
from US $3.20 |
||
|
92022A
|
92022A
92022-101 WASHER SEAL PLATE |
92022-101 |
from US $2.49 |
||
|
92022B
|
92022B
92022-183 WASHER-PLAIN |
92022-183 |
from US $2.53 |
||
|
92027
|
92027
92027-223 COLLAR,FR SIG LIGHT |
92027-223 |
US $4.46 |
||
|
92037
|
92037
92037-010 CLAMP FUEL PIPE |
92037-010 |
from US $2.69 |
||
|
92059
|
92059
92059-072 PIPE-OIL |
92059-072 |
from US $19.01 |
||
|
92071
|
92071
92071-038 GROMMET PIPE |
92071-038 |
from US $2.88 |
||
|
92075
|
92075
92075-106 DAMPER RUBBER-FL TANK |
92075-106 |
from US $9.01 |
||
|
92075A
|
92075A
92075-1086 DAMPER RUBBER,MUFFLER |
92075-1086 |
from US $3.48 |
||
|
92075B
|
92075B
92075-125 DAMPER RUBBER,FL TANK |
92075-125 |
from US $4.44 |
||
