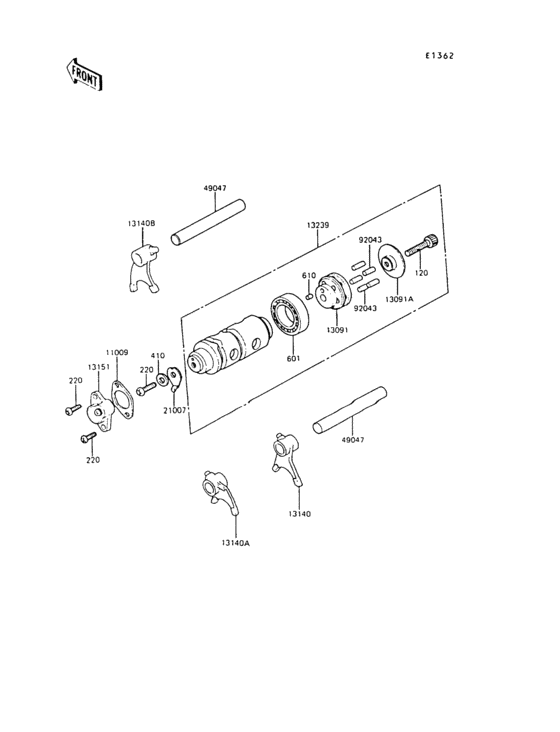

Gear change drum/shift fork(s) Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0630 BOLT-SOCKET |
120CB0630 |
from US $1.27 |
||
|
220
|
220
220AA0616 SCREW-PAN-CROS,6X16 |
220AA0616 |
from US $0.95 |
||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
601
|
601
601B6004 BEARING BALL #6004 |
601B6004 |
from US $8.93 |
||
|
610
|
610
610A0406 PIN-DOWEL,4X6 |
610A0406 |
from US $0.79 |
||
|
11009
|
11009
13146002 GASKET NEUTRAL SWITCH |
13146002 |
from US $2.95 |
||
|
13091
|
13091
13091-1077 HOLDER |
13091-1077 |
from US $22.23 |
||
|
13091A
|
13091A
13142014 HOLDER,CHANGE DRUM |
13142014 |
from US $12.60 |
||
|
13140
|
13140
13140-1026 SHIFT FORK,LOW&2ND |
13140-1026 |
US $76.84 |
||
|
13140A
|
13140A
13140-1027 SHIFT FORK,3RD |
13140-1027 |
from US $59.26 |
||
|
13140B
|
13140B
13140-1028 SHIFT FORK,4TH&TOP |
13140-1028 |
US $72.50 |
||
|
13151
|
13151
13151-1001 SWITCH,NEUTRAL |
13151-1001 |
from US $8.87 |
||
|
13239
|
13239
13239-5001 DRUM-ASSY-CHANGE |
13239-5001 |
US $107.19 |
||
| replacement | |||||
|
13239
|
13239
13169-1253 PLATE,GEAR CHANGE |
13169-1253 |
US $2.48 |
||
|
21007
|
21007
21007-1003 ROTOR,NEUTRAL INDICTR |
21007-1003 |
from US $4.51 |
||
|
49047
|
49047
13209014 RODSHIFT,SHORT |
13209014 |
from US $11.29 |
||
|
92043
|
92043
92042-042 PIN,GEAR CHANGE DRUM |
92042-042 |
from US $2.65 |
||
