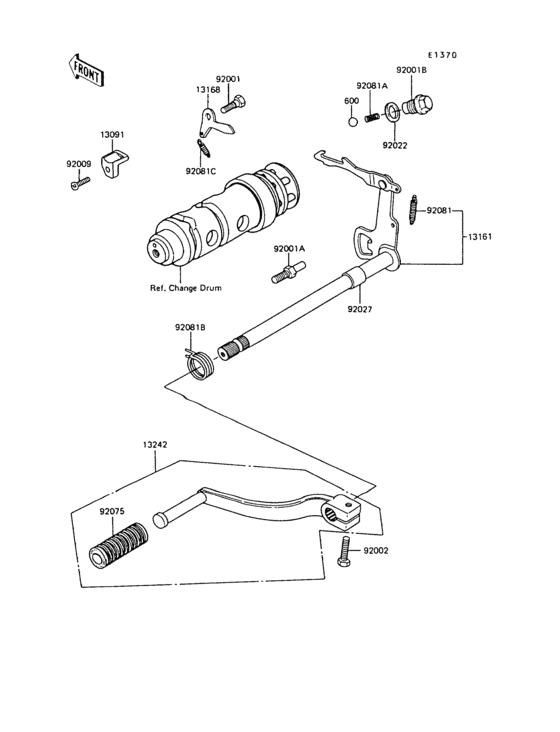

Gear change mechanism Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
600
|
600
600A1300 BALL, STEEL, 13/32IN |
600A1300 |
from US $0.95 |
||
|
13091
|
13091
13091-1350 HOLDER |
13091-1350 |
from US $8.87 |
||
|
13161
|
13161
13161-1197 LEVER-COMP-CHANGE SFT |
13161-1197 |
from US $43.86 |
||
|
13168
|
13168
13168-1046 LEVER,GEAR CHANGE DRM |
13168-1046 |
from US $3.27 |
||
|
13242
|
13242
13242004
PEDAL SET GEAR CHANGE
|
13242004 |
— | ||
|
92001
|
92001
92150-1450 BOLT,CHANGE DRUM LEVE |
92150-1450 |
from US $3.64 |
||
|
92001A
|
92001A
92001-1455 BOLT,EXCLUSIVE MASS P |
92001-1455 |
from US $2.85 |
||
|
92001B
|
92001B
92001-1934 BOLT,16X28.5 |
92001-1934 |
US $6.88 |
||
|
92002
|
92002
92002-1237 BOLT,6X20 |
92002-1237 |
from US $2.69 |
||
|
92009
|
92009
92009-1266 SCREW |
92009-1266 |
from US $2.69 |
||
|
92022
|
92022
92022-324 WASHER,PLAIN |
92022-324 |
from US $3.02 |
||
|
92027
|
92027
92152-0582 COLLAR,12X18X11.5 |
92152-0582 |
from US $4.05 |
||
|
92075
|
92075
92161-1532 DAMPER,CHANGE PEDAL |
92161-1532 |
from US $4.87 |
||
|
92081
|
92081
92144-1720 SPRING,CHANGE LEVER |
92144-1720 |
from US $2.79 |
||
|
92081A
|
92081A
92081-112 SPRING |
92081-112 |
from US $3.64 |
||
|
92081B
|
92081B
92081-1129 SPRING,TENTION |
92081-1129 |
from US $6.34 |
||
|
92081C
|
92081C
92083-012 SPRING,CHNG DRUM LEV |
92083-012 |
from US $3.01 |
