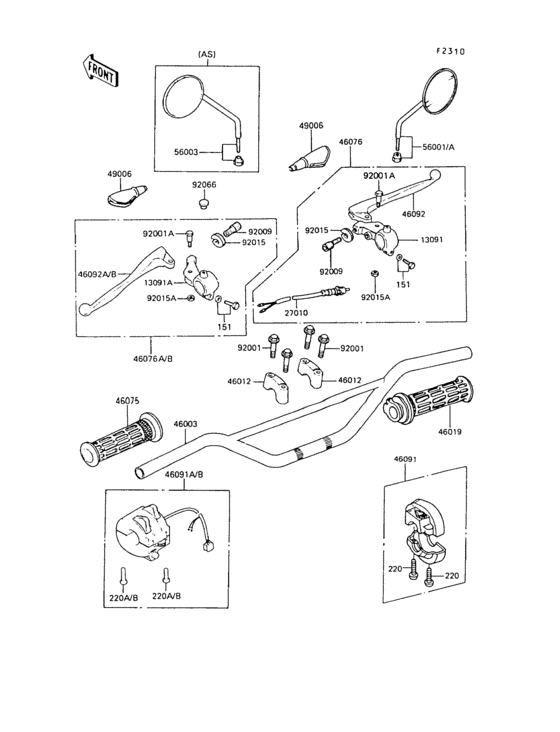

Handlebar Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
151
|
151
151N0625 BOLT-WP |
151N0625 |
US $3.71 |
||
|
220
|
220
220AA0518 SCREW-PAN-CROS |
220AA0518 |
from US $0.94 |
||
|
220B
|
220B
220AA0530 SCREW-PAN-CROS |
220AA0530 |
from US $0.95 |
||
|
13091
|
13091
4606000921 HOLDER-FR BRK LEV,BLK |
4606000921 |
from US $24.11 |
||
|
13091A
|
13091A
4609401121 HOLDER,F.BLACK |
4609401121 |
from US $23.64 |
||
|
27010
|
27010
27021004 SWITCH-FR. BRAKE LAMP |
27021004 |
from US $20.06 |
||
|
46003
|
46003
46003-1059 HANDLEBAR |
46003-1059 |
US $83.81 |
||
|
46012
|
46012
46012008 HOLDER-HANDLEBAR |
46012008 |
from US $24.53 |
||
|
46019
|
46019
46019-1005 GRIP ASSY,THROTTLE |
46019-1005 |
from US $33.42 |
||
|
46075
|
46075
46075-1004 GRIP,L.H. |
46075-1004 |
from US $13.28 |
||
|
46076
|
46076
46021031 LEVER ASSY,FRNT BRAKE |
46021031 |
US $42.48 |
||
|
46076B
|
46076B
46076-044 Lever assy,clutch |
46076-044 |
from US $45.72 |
||
|
46091
|
46091
46091-1041 HOUSING ASSY,CONT,R.H |
46091-1041 |
US $56.16 |
||
|
46091B
|
46091B
46091-1192
Housing-assy-control,
|
46091-1192 |
— | ||
|
46092
|
46092
46058-004 LEVER, FRONT BRAKE |
46058-004 |
from US $24.91 |
||
|
46092B
|
46092B
46092015 LEVER-CLUTCH |
46092015 |
from US $20.45 |
||
|
49006
|
49006
49006-1017 BOOTS,LEVER HOLDER |
49006-1017 |
from US $16.47 |
||
|
56001
|
56001
56001-1020
Mirror-assy,rh
|
56001-1020 |
— | ||
|
92001
|
92001
92001-1910 BOLT,FLANGED,8X35 |
92001-1910 |
from US $3.80 |
||
| replacement | |||||
|
92001
|
92001
92154-2923 BOLT,FLANGED,8X35 |
92154-2923 |
from US $4.61 |
||
|
92001A
|
92001A
92007-046 BOLT,HEX HEAD,5X22 |
92007-046 |
from US $4.59 |
||
|
92009
|
92009
46055003 SCREW CABLE ADJUST |
46055003 |
from US $11.09 |
||
|
92015
|
92015
46056005 NUT-LOCK |
46056005 |
from US $6.02 |
||
|
92015A
|
92015A
92019-014 NUT-LOCK,5MM |
92019-014 |
from US $3.01 |
||
|
92066
|
92066
92066-1077 PLUG,9.5X8 |
92066-1077 |
from US $3.01 |
||
