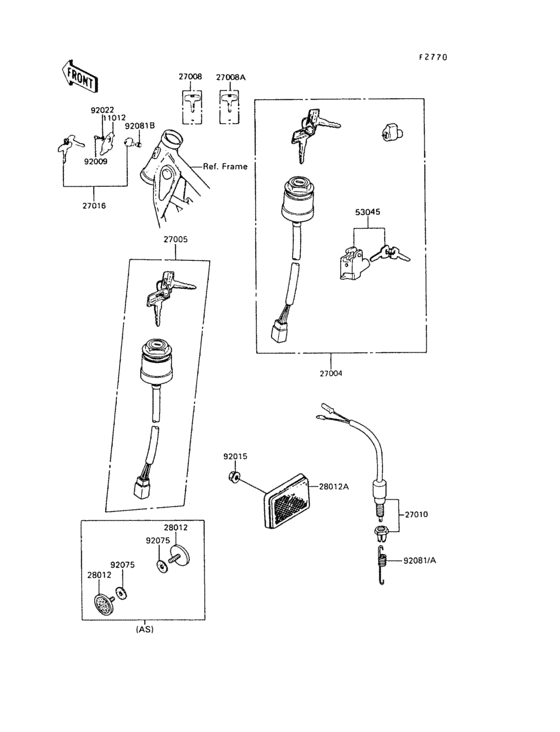

Ignition switch Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1134 CAP,STEERING LOCK |
11012-1134 |
from US $5.07 |
||
|
27004
|
27004
27004-5143
Switch-assy
|
27004-5143 |
— | ||
|
27005
|
27005
27005-1056
SWITCH-ASSY-IGNITION
|
27005-1056 |
— | ||
|
27008
|
27008
27008-1024 KEY,BLANK |
27008-1024 |
from US $13.06 |
||
|
27008A
|
27008A
27008-1025 KEY,BLANK |
27008-1025 |
from US $13.06 |
||
|
27010
|
27010
27010025 SWITCH,BRAKE LIGHT |
27010025 |
from US $19.64 |
||
|
27016
|
27016
27016042 LOCK ASSY,STEERING |
27016042 |
from US $30.64 |
||
|
28012A
|
28012A
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
|
53045
|
53045
53045-014
LOCK ASSY,SEAT
|
53045-014 |
— | ||
|
92009
|
92009
92008-007 SCREW-TAPPING |
92008-007 |
from US $3.73 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92022
|
92022
92097-003 WASHER |
92097-003 |
from US $3.17 |
||
|
92081
|
92081
27011-011 SPRING-BRAKE LAMP SWITCH |
27011-011 |
from US $6.18 |
||
|
92081A
|
92081A
27011015 SPRING,BRAKE LIGHT SW |
27011015 |
from US $7.44 |
||
|
92081B
|
92081B
27032001 SPRING-STEERING LOCK |
27032001 |
from US $3.37 |
