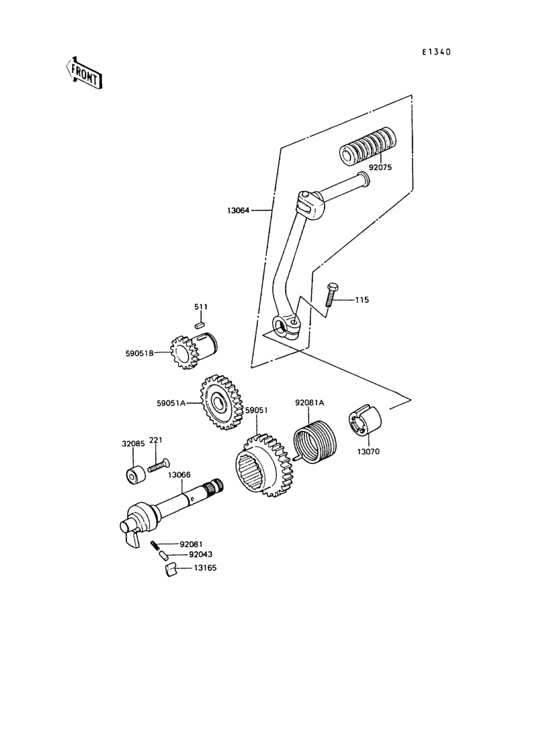

Kickstarter mechanism Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115J0825
BOLT-SMALL-UPSET,8X25
|
115J0825 |
— | ||
| replacement | |||||
|
115
|
115
115BB0825 BOLT-SMALL-UPSET,8X25 |
115BB0825 |
from US $1.09 |
||
|
221
|
221
221AA0620 SCREW-CNTSNK HD,6X20 |
221AA0620 |
from US $1.25 |
||
|
511
|
511
511A0412 KEY, SUNK |
511A0412 |
from US $1.40 |
||
|
13064
|
13064
13064-1039
LEVER-ASSY-KICK,PEDAL
|
13064-1039 |
— | ||
|
13066
|
13066
13066-1024 SHAFT-KICK |
13066-1024 |
from US $78.09 |
||
|
13070
|
13070
13070-1130 GUIDE,KICK SPRING |
13070-1130 |
from US $8.55 |
||
|
13165
|
13165
13069005 PAWL KICKSTARTER |
13069005 |
from US $8.87 |
||
|
32085
|
32085
13072-003 STOPPER, KICK STARTER |
13072-003 |
from US $5.76 |
||
|
59051
|
59051
13068-007
GEAR, KICK STARTER (35T)
|
13068-007 |
— | ||
|
59051A
|
59051A
13073-004 IDLE GEAR (30T) |
13073-004 |
from US $57.02 |
||
|
59051B
|
59051B
59051-1033 Gear-spur,kick starte |
59051-1033 |
US $55.99 |
||
|
92043
|
92043
92043-013 P/N,KICKSTARTER PAWL |
92043-013 |
from US $2.65 |
||
|
92075
|
92075
13063-002 RUBBER, KICK PEDAL |
13063-002 |
from US $3.48 |
||
|
92081
|
92081
92081-014 SPRING KICK PAWL |
92081-014 |
from US $2.79 |
||
|
92081A
|
92081A
92083-004 SPRING KICKSTARTER |
92083-004 |
from US $6.68 |
||
