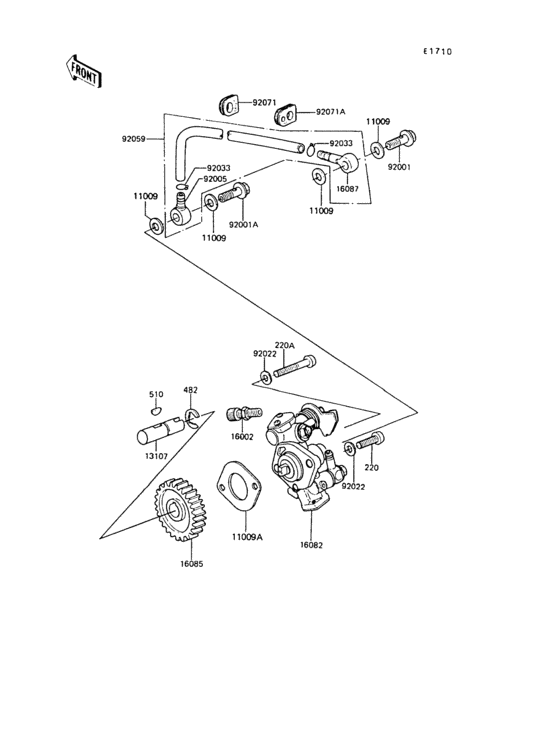

Oil pump Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
220A
|
220A
220B0528 SCREW-PAN-CROS |
220B0528 |
US $0.63 |
||
| replacement | |||||
|
220A
|
220A
220AA0528 SCREW-PAN-CROS |
220AA0528 |
from US $0.62 |
||
|
482
|
482
482K9000 CIRCLIP 9MM |
482K9000 |
from US $3.04 |
||
|
510
|
510
510A3100 WOODRUFF KEY |
510A3100 |
from US $3.40 |
||
|
11009
|
11009
11060-1502 GASKET,6X12X1.0 |
11060-1502 |
US $3.96 |
||
|
11009A
|
11009A
11060-1160 GASKET,OIL PUMP |
11060-1160 |
from US $3.31 |
||
|
13107
|
13107
16086-001 SHAFT OIL PUMP |
16086-001 |
US $14.29 |
||
|
16002
|
16002
16002-012 ADJUSTER,CABLE |
16002-012 |
from US $9.19 |
||
|
16082
|
16082
16082-1021 Pump-assy-oil |
16082-1021 |
US $220.45 |
||
|
16085
|
16085
16085-004 GEAR OIL PUMP |
16085-004 |
from US $13.38 |
||
|
16087
|
16087
16128009 VALVE,CHECK |
16128009 |
from US $14.77 |
||
|
92001
|
92001
92060-008 BOLT BANJO |
92060-008 |
from US $9.01 |
||
|
92001A
|
92001A
92150-1982 BOLT,BANJO,6X16 |
92150-1982 |
from US $3.80 |
||
|
92005
|
92005
92061-018 FITTING,BANJO |
92061-018 |
from US $6.54 |
||
|
92022
|
92022
92022-037 WASHER OIL PUMP |
92022-037 |
from US $2.53 |
||
|
92033
|
92033
92036-022 CLAMP,OIL PIPE |
92036-022 |
from US $2.79 |
||
|
92059
|
92059
16134021 PIPE,OIL |
16134021 |
from US $27.68 |
||
|
92071
|
92071
21017002 GROMMET WIRING HARN |
21017002 |
from US $3.31 |
||
|
92071A
|
92071A
92071-067 GROMMET,OIL PIPE |
92071-067 |
from US $3.27 |
||
