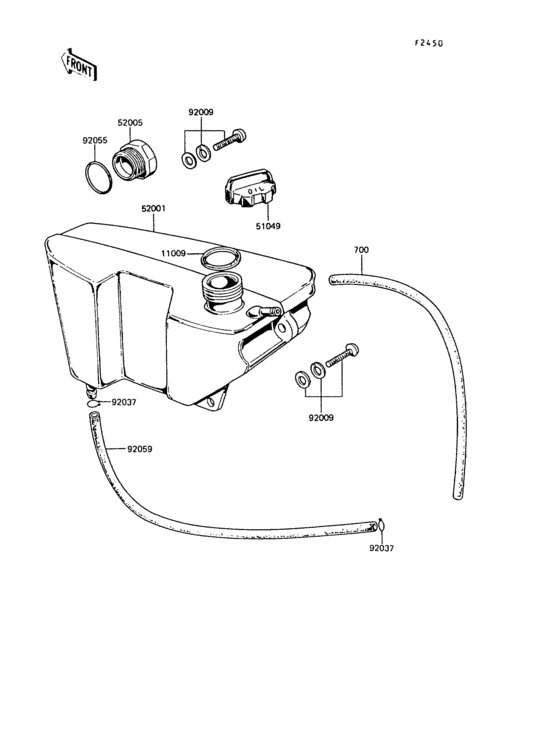

Oil tank Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
700
|
700
700Q051000
TUBE-PVC,5X1000
|
700Q051000 |
— | ||
|
11009
|
11009
92065-085 GASKET-OIL TANK CAP |
92065-085 |
from US $2.95 |
||
|
51049
|
51049
52003019 CAP-OIL TANK |
52003019 |
from US $6.06 |
||
|
52001
|
52001
52001029
TANK-OIL
|
52001029 |
— | ||
|
52005
|
52005
52015-002
GUAGE-OIL LEVEL
|
52015-002 |
— | ||
|
92009
|
92009
92009-1283 SCREW,-PAN-WSP-CROS,6 |
92009-1283 |
from US $3.04 |
||
|
92037
|
92037
92037-010 CLAMP FUEL PIPE |
92037-010 |
from US $2.69 |
||
|
92055
|
92055
92055-051 O RING,20MM |
92055-051 |
from US $3.48 |
||
|
92059
|
92059
92059-072 PIPE-OIL |
92059-072 |
from US $19.01 |
