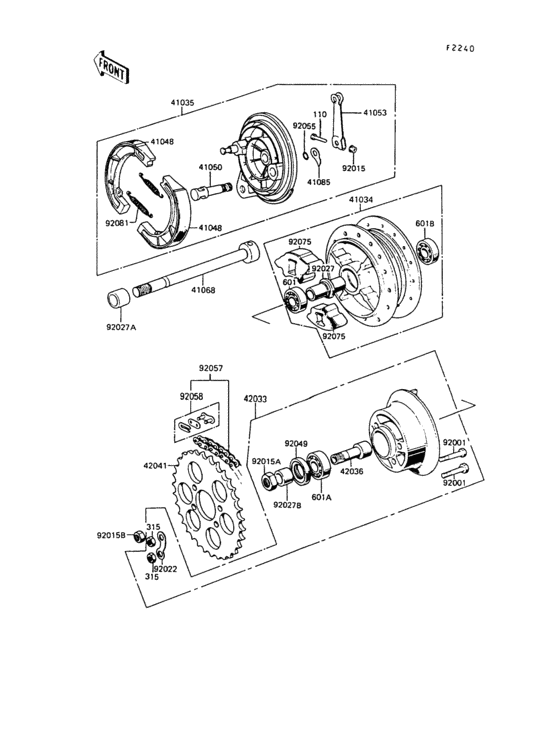

Rear hub Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
315
|
315
315AA1000 NUT-HEX-FINE |
315AA1000 |
from US $0.77 |
||
|
601
|
601
601B6201 BEARING-BALL,#6201C3 |
601B6201 |
from US $9.82 |
||
|
601B
|
601B
601B6301Z
BEARING BALL #6301Z
|
601B6301Z |
— | ||
|
41034
|
41034
41034-1048 DRUM-ASSY,RR BRK |
41034-1048 |
US $279.86 |
||
|
41035
|
41035
41035-1292 PANEL-ASSY-BRAKE,RR |
41035-1292 |
US $253.49 |
||
|
41048
|
41048
41048-1085 SHOE-BRAKE |
41048-1085 |
from US $35.72 |
||
|
41050
|
41050
42026018 CAM SHAFT,REAR BRAKE |
42026018 |
US $25.04 |
||
|
41053
|
41053
42029020 LEVER-REAR BRAKE CAM |
42029020 |
US $26.48 |
||
|
41068
|
41068
41068-1360 AXLE,RR |
41068-1360 |
US $26.76 |
||
|
41085
|
41085
41085003 INDICATOR,BKSHOE |
41085003 |
from US $10.93 |
||
|
42033
|
42033
42033-1173 COUPLING-ASSY,RR HUB |
42033-1173 |
US $166 |
||
|
42036
|
42036
42036013 SLEEVE-RR HUB COUPLNG |
42036013 |
US $31.68 |
||
|
42041
|
42041
42041-1095 SPROCKET-HUB,40T |
42041-1095 |
from US $45.54 |
||
|
92001
|
92001
92151-1160 BOLT |
92151-1160 |
from US $1.71 |
||
|
92015
|
92015
41072007 NUT,6MM |
41072007 |
from US $2.85 |
||
|
92015A
|
92015A
42045004 NUT,16MM |
42045004 |
from US $4.82 |
||
|
92015B
|
92015B
42045005 NUT 10MM |
42045005 |
from US $4.67 |
||
|
92022
|
92022
92088-011 WASHER LOCK |
92088-011 |
from US $2.79 |
||
|
92027
|
92027
42010005 SPACER-RR HUB BEARING |
42010005 |
from US $8.09 |
||
|
92027A
|
92027A
92027-1477 COLLAR,12.2X22X28.5 |
92027-1477 |
US $7.94 |
||
|
92027B
|
92027B
42037003 BUSH,COUPLNG OIL SEAL |
42037003 |
from US $8.24 |
||
|
92049
|
92049
92052-003 OIL SEAL-COUPLING |
92052-003 |
from US $7 |
||
|
92055
|
92055
92055-004 0 RING,11MM |
92055-004 |
from US $3.17 |
||
|
92057
|
92057
92057-1099 CHAIN,DRIVE,EK428-G |
92057-1099 |
from US $69.98 |
||
|
92058
|
92058
92058-1014 JOINT-CHAIN |
92058-1014 |
from US $3.57 |
||
|
92075
|
92075
42014016 DAMPER REAR HUB SHOCK |
42014016 |
from US $10.57 |
||
|
92081
|
92081
92081-1766 SPRING,BRAKE SHOE |
92081-1766 |
from US $5.39 |
