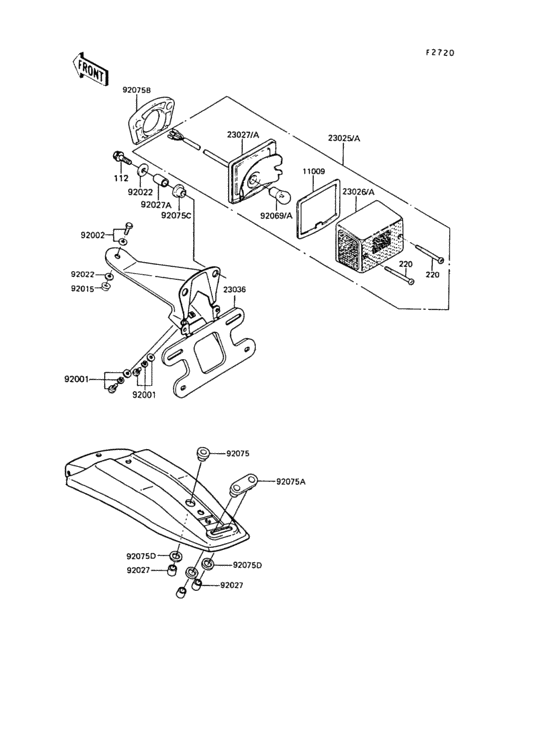

Taillight(s) Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112BA0625 BOLT-UPSET,6X25 |
112BA0625 |
from US $1.07 |
||
|
220
|
220
220B0440 SCREW-PAN-CROS |
220B0440 |
from US $1.27 |
||
| replacement | |||||
|
220
|
220
220AA0440 SCREW-PAN-CROS |
220AA0440 |
from US $0.94 |
||
|
11009
|
11009
11009-1078 GASKET,TAIL LAMP LENS |
11009-1078 |
from US $4.80 |
||
|
23025A
|
23025A
23025-1145
Lamp-tail
|
23025-1145 |
— | ||
|
23026A
|
23026A
23026-1081 LENS,TAIL LAMP |
23026-1081 |
from US $39.64 |
||
|
23027
|
23027
23027-1006
Case,tail lamp
|
23027-1006 |
— | ||
|
23036
|
23036
23036-1023
Bracket-tail lamp
|
23036-1023 |
— | ||
|
92001
|
92001
92002-1309 BOLT,6X30 |
92002-1309 |
from US $2.75 |
||
|
92002
|
92002
92002-1125 BOLT,6X28 |
92002-1125 |
US $3.17 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
|
92027
|
92027
92027-156
COLLAR 6.8X10X14.5
|
92027-156 |
— | ||
|
92027A
|
92027A
92027-1819 COLLAR,6.1X8X15.7 |
92027-1819 |
US $3.13 |
||
|
92069A
|
92069A
92069-062
Bulb,6v 21/5w
|
92069-062 |
— | ||
|
92075
|
92075
92075-1004
DAMPER,TAIL LAMP
|
92075-1004 |
— | ||
|
92075A
|
92075A
92075-1005
DAMPER,TAIL LAMP
|
92075-1005 |
— | ||
|
92075B
|
92075B
92075-1094 DAMPER RUBBER,TL LAMP |
92075-1094 |
from US $12.67 |
||
|
92075C
|
92075C
92075-1095 DAMPER RUBBER |
92075-1095 |
US $2.59 |
||
|
92075D
|
92075D
92075-310
DAMPER RUBBER,SIGNAL
|
92075-310 |
— | ||
