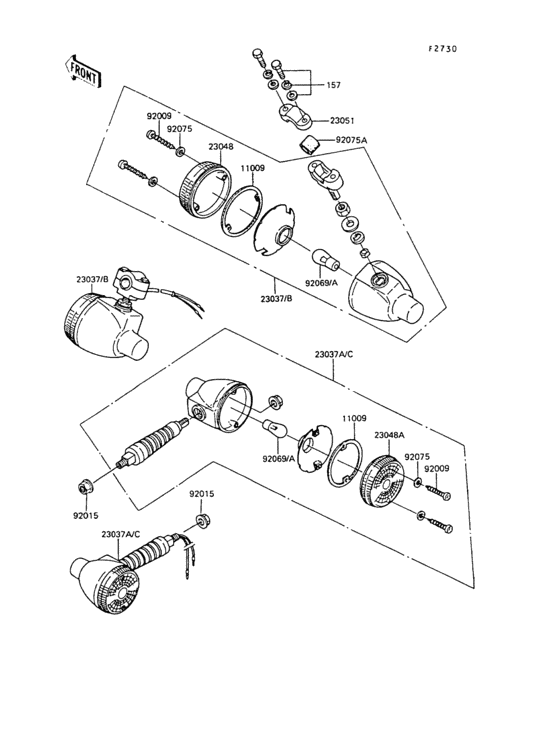

Turn signals Diagram Kawasaki KE100
- Year
- 1987
- Model code
- KE100-B06
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Frame
- KE100B 017106 - 018000
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
157
|
157
187B0530 BOLT-UPSET-WSP |
187B0530 |
US $1.78 |
||
|
11009
|
11009
11009-1128 GASKET,SGNL LAMP LENS |
11009-1128 |
from US $3.43 |
||
|
23037B
|
23037B
23037-1227
Lamp-assy-signal,fr
|
23037-1227 |
— | ||
|
23037C
|
23037C
23037-1228
Lamp-assy-signal,rr
|
23037-1228 |
— | ||
|
23048
|
23048
23048-1075
Lens-signal lamp
|
23048-1075 |
— | ||
|
23048A
|
23048A
23048-1076 LENS-SIGNAL LAMP |
23048-1076 |
from US $7.78 |
||
|
23051
|
23051
23051-1018
BRACKET,F SIGNAL LAMP
|
23051-1018 |
— | ||
|
92009
|
92009
92009-1056 SCREW,TAPPING |
92009-1056 |
from US $3.17 |
||
|
92015
|
92015
92015-1428 NUT,FLANGED,10MM |
92015-1428 |
from US $3.01 |
||
|
92075
|
92075
23058002 WASHER-PLAIN,4MM |
23058002 |
from US $2.85 |
||
|
92075A
|
92075A
23066003 DAMPER RUBBER |
23066003 |
US $5 |
