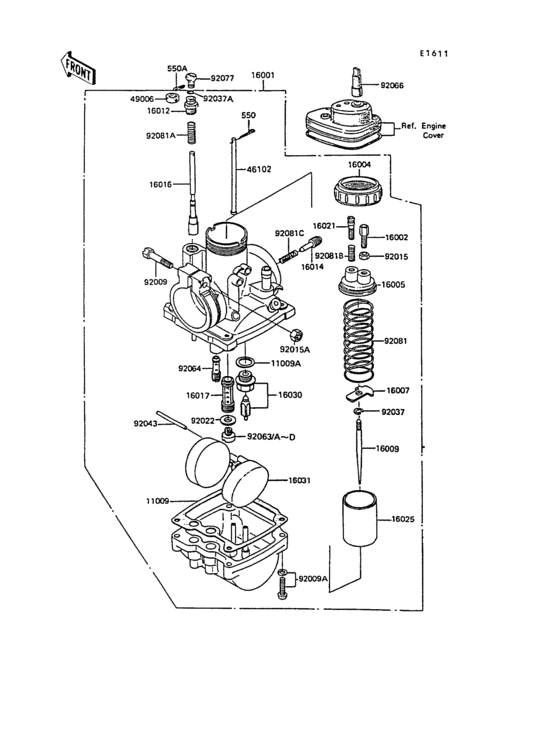

Carburetor(1/2) Diagram Kawasaki KE100
- Year
- 1991
- Colour
- Lime Green (7F)
- Model code
- KE100-B10
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D1210
PIN COTTER 1.2X10
|
550D1210 |
— | ||
| replacement | |||||
|
550
|
550
550AA1210 PIN-COTTER,1.2X10 |
550AA1210 |
from US $1.12 |
||
|
550A
|
550A
550D1615
PIN COTTER 1.6X15
|
550D1615 |
— | ||
| replacement | |||||
|
550A
|
550A
550AA1615 PIN-COTTER,1.6X15 |
550AA1615 |
from US $0.72 |
||
|
11009
|
11009
16019-021 GASKET,FLOAT CHAMBER |
16019-021 |
from US $12.82 |
||
|
11009A
|
11009A
16029-002 WASHER VALVE SEAT |
16029-002 |
from US $3.17 |
||
|
16001
|
16001
16001-1509
Carburetor
|
16001-1509 |
— | ||
|
16002
|
16002
16002-017 ADJUSTER,CABLE |
16002-017 |
from US $9.50 |
||
|
16004
|
16004
16004-010 CAP MIXING CHAMBER |
16004-010 |
from US $12.60 |
||
|
16005
|
16005
16005-005 TOP MIXING CHAMBER |
16005-005 |
from US $12.60 |
||
|
16007
|
16007
16007-020 SPRING SEAT,THRTL TL |
16007-020 |
from US $7 |
||
|
16009
|
16009
16009-1094
Needle-jet,4m5-3 nor
|
16009-1094 |
— | ||
|
16012
|
16012
16012-021
CAP,STARTER PLUNGER
|
16012-021 |
— | ||
|
16014
|
16014
16014-002 SCREW PILOT AIR ADJST |
16014-002 |
from US $11.35 |
||
|
16016
|
16016
16016-012 PLUNGER,STARTER |
16016-012 |
from US $28.61 |
||
|
16017
|
16017
16017-1093
Jet-needle,p-0 nor
|
16017-1093 |
— | ||
|
16021
|
16021
16021-002 SCREW,THROTTLE STOP |
16021-002 |
from US $11.52 |
||
|
16025
|
16025
16025-057 VALVE,THROTTLE CA2.0 |
16025-057 |
from US $74.81 |
||
|
16030
|
16030
16030-001 FLOAT VALVE ASSY |
16030-001 |
from US $34.83 |
||
|
16031
|
16031
16031-015 FLOAT |
16031-015 |
from US $34.83 |
||
|
46102
|
46102
16024-006 ROD,THROTTLE VLV STP |
16024-006 |
US $6.88 |
||
| replacement | |||||
|
46102
|
46102
16024-012 ROD,THROTTLE VLV STP |
16024-012 |
US $6.88 |
||
|
49006
|
49006
16036-012 CAP,STARTER PLUNGER |
16036-012 |
from US $7.78 |
||
| replacement | |||||
|
49006
|
49006
16039-015 CAP,RUBBER,STARTER PL |
16039-015 |
from US $4.75 |
||
|
92009
|
92009
16010-004 SCREW CLAMP |
16010-004 |
from US $3.27 |
||
|
92009A
|
92009A
16033-012
SCREW-PAN-WS-CROS
|
16033-012 |
— | ||
| replacement | |||||
|
92009A
|
92009A
223AA0418 SCREW-PAN-WS-CROS |
223AA0418 |
from US $1.09 |
||
|
92015
|
92015
16003-004 NUT CABLE ADJUST LOCK |
16003-004 |
from US $4.59 |
||
|
92015A
|
92015A
16011-002 NUT-HEX,6MM |
16011-002 |
US $0.61 |
||
| replacement | |||||
|
92015A
|
92015A
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
92022
|
92022
16034-001 WASHER MAIN JET |
16034-001 |
from US $3.01 |
||
|
92037
|
92037
16008-010 CIRCLIP |
16008-010 |
from US $6.65 |
||
|
92037A
|
92037A
92037-1077
CIRCLIP
|
92037-1077 |
— | ||
|
92043
|
92043
16032-003
PIN,FLOAT
|
16032-003 |
— | ||
| replacement | |||||
|
92043
|
92043
16032-008 PIN,FLOAT |
16032-008 |
from US $4.20 |
||
|
92063
|
92063
92063-093 JET-MAIN,#A85R |
92063-093 |
US $12.74 |
||
| replacement | |||||
|
92063
|
92063
92063-1323 JET-MAIN,#A85R |
92063-1323 |
from US $8.71 |
||
|
92063A
|
92063A
92063-094 MAIN JET NO 87.5R |
92063-094 |
from US $10.01 |
||
|
92063B
|
92063B
92063-095 MAIN JET,#A90R |
92063-095 |
US $8.98 |
||
| replacement | |||||
|
92063B
|
92063B
92063-1029 MAIN JET,#A90R |
92063-1029 |
from US $8.98 |
||
|
92063C
|
92063C
92063-099 MAIN JET NO 95A |
92063-099 |
US $8.98 |
||
|
92063D
|
92063D
92063-1085 MAIN JET,#A92.5R |
92063-1085 |
US $10.01 |
||
|
92064
|
92064
92064-020 PILOT JET #17.5 ISO |
92064-020 |
from US $13.15 |
||
|
92066
|
92066
16147001 PLUG,CARBURETOR CAP |
16147001 |
from US $3.31 |
||
|
92077
|
92077
92077-022 KNOB,CARBURETOR |
92077-022 |
US $6.38 |
||
|
92081
|
92081
16006-013 SPRING THROTTLE VALVE |
16006-013 |
from US $9.33 |
||
|
92081A
|
92081A
16013-010
SPRING,STARTER PLUNGR
|
16013-010 |
— | ||
|
92081B
|
92081B
16022-005 SPRING THR STOP SCREW |
16022-005 |
from US $6.81 |
||
|
92081C
|
92081C
16022-007 SPRING,PILOT AIR SCRE |
16022-007 |
from US $5.44 |
||
