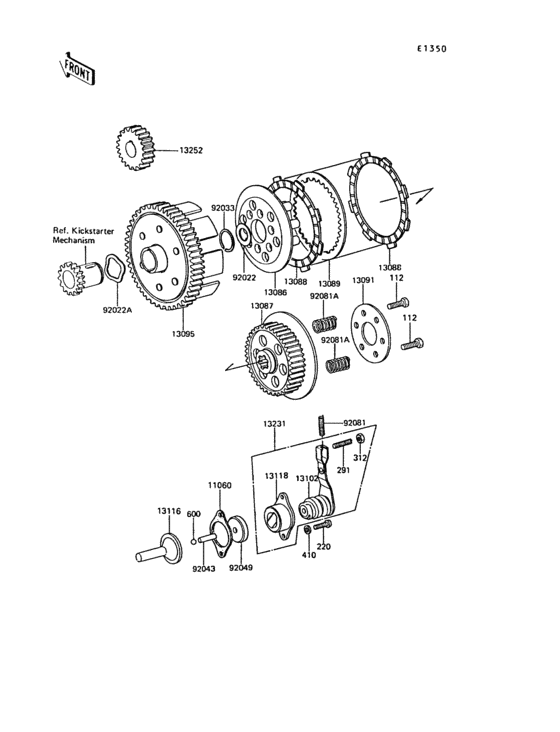

Clutch Diagram Kawasaki KE100
- Year
- 1991
- Colour
- Lime Green (7F)
- Model code
- KE100-B10
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0520
BOLT
|
112G0520 |
— | ||
| replacement | |||||
|
112
|
112
112BA0520 BOLT |
112BA0520 |
from US $0.79 |
||
|
220
|
220
220B0616
SCREW-PAN-CROS,6X16
|
220B0616 |
— | ||
| replacement | |||||
|
220
|
220
220AA0616 SCREW-PAN-CROS,6X16 |
220AA0616 |
from US $0.95 |
||
|
291
|
291
291H0616 SCREW,SLOTTED,6X16 |
291H0616 |
from US $3.57 |
||
|
312
|
312
312B0600 NUT-HEX |
312B0600 |
US $0.95 |
||
| replacement | |||||
|
312
|
312
312AA0600 NUT-HEX |
312AA0600 |
from US $0.94 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
600
|
600
600A0900 BALL STEEL 9/32' |
600A0900 |
from US $0.95 |
||
|
11060
|
11060
11060-1197
GASKET,CLUTCH RELEASE
|
11060-1197 |
— | ||
|
13086
|
13086
13086-1002 WHEEL,CLUTCH |
13086-1002 |
from US $30.52 |
||
|
13087
|
13087
13087-1011 HUB,CLUTCH |
13087-1011 |
from US $55.05 |
||
|
13088
|
13088
13088-1010 PLATE,CLUTCH FRICTION |
13088-1010 |
from US $14.11 |
||
|
13089
|
13089
13089-1009
PLATE-CLUTCH,STEEL
|
13089-1009 |
— | ||
| replacement | |||||
|
13089
|
13089
13089-1087 Plate, clutch |
13089-1087 |
from US $10.77 |
||
|
13091
|
13091
13091-1115 HOLDER,CLUTCH SPRING |
13091-1115 |
from US $13.15 |
||
|
13095
|
13095
13095-1212 Housing-comp-clutch |
13095-1212 |
US $300.15 |
||
|
13102
|
13102
13102-1016 RELEASE-COMP-CLUTCH,I |
13102-1016 |
from US $27.99 |
||
|
13116
|
13116
13116-1135 ROD-PUSH,CLUTCH |
13116-1135 |
from US $19.80 |
||
|
13118
|
13118
13118-1001 RELEASE-CLUTCH OUTER |
13118-1001 |
from US $15.09 |
||
|
13231
|
13231
13231-1008 RELEASE-ASSY-CLUTCH |
13231-1008 |
from US $46.20 |
||
|
13252
|
13252
13252-1053
GEAR, PRIMARY HELICAL
|
13252-1053 |
— | ||
|
92022
|
92022
92022-054 WASHER THRUST CLUTCH |
92022-054 |
from US $4.44 |
||
|
92022A
|
92022A
92022-1213 WASHER,WAVE,264X34.2 |
92022-1213 |
from US $2.65 |
||
|
92033
|
92033
92033-1065 RINGSNAP, 23.5MM |
92033-1065 |
from US $2.69 |
||
|
92043
|
92043
92042-043 PIN,DOWEL |
92042-043 |
from US $2.95 |
||
|
92049
|
92049
92050-071 OIL SEAL |
92050-071 |
from US $6.06 |
||
|
92081
|
92081
92081-096 SPRING-CLUTCH RELEASE |
92081-096 |
from US $3.11 |
||
|
92081A
|
92081A
92081-1175 SPRING,CLUTCH |
92081-1175 |
from US $3.64 |
||
