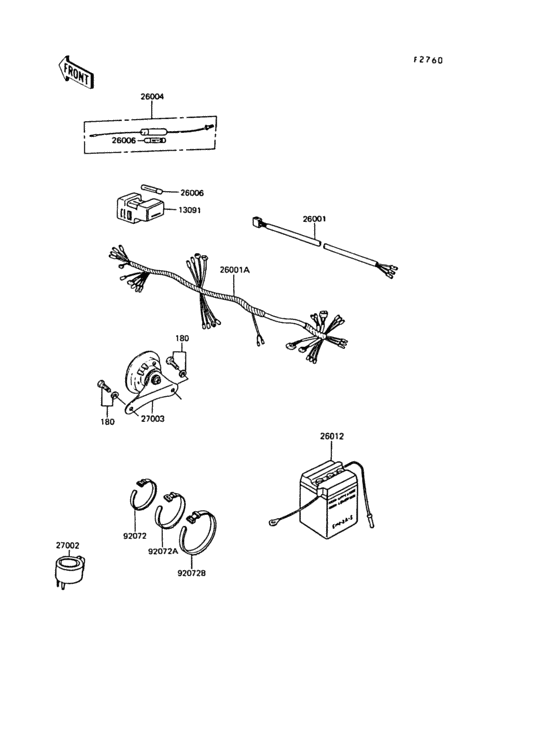

Electrical equipment Diagram Kawasaki KE100
- Year
- 1991
- Colour
- Lime Green (7F)
- Model code
- KE100-B10
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180C0625 BOLT-UPSET-WS,6X25 |
180C0625 |
from US $1.43 |
||
| replacement | |||||
|
180
|
180
180AB0625 BOLT-UPSET-WS,6X25 |
180AB0625 |
US $2.41 |
||
|
13091
|
13091
26016003
HOLDER,SPARE FUSE
|
26016003 |
— | ||
|
26001
|
26001
26001-1007
WIRING HARNESS,TAIL L
|
26001-1007 |
— | ||
|
26001A
|
26001A
26001-1625
Harness,main
|
26001-1625 |
— | ||
|
26004
|
26004
26004017 FUSE ASSY |
26004017 |
from US $11.35 |
||
|
26006
|
26006
26006003 FUSE,GLASS TUBE,6.4X2 |
26006003 |
from US $3.48 |
||
|
26012
|
26012
26012-1128
Battery
|
26012-1128 |
— | ||
| replacement | |||||
|
26012
|
26012
26012-1287
Battery,6n4-2a-5,6v 4
|
26012-1287 |
— | ||
|
27002
|
27002
27002019
Relay,turn signal
|
27002019 |
— | ||
|
27003
|
27003
27003-1052 HORN |
27003-1052 |
from US $38.72 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92072B
|
92072B
92072-032 BAND,LONG |
92072-032 |
from US $3.01 |
||
