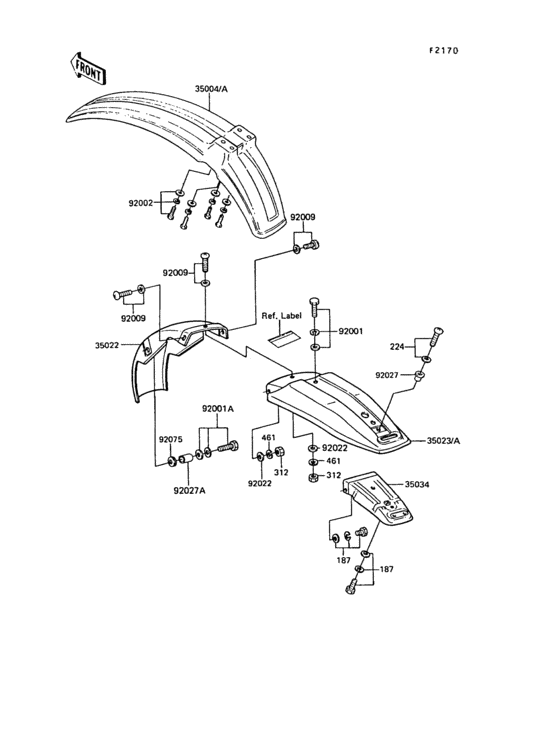

Fender Diagram Kawasaki KE100
- Year
- 1991
- Colour
- Lime Green (7F)
- Model code
- KE100-B10
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187B0612
BOLT-UPSET-WSP
|
187B0612 |
— | ||
| replacement | |||||
|
187
|
187
187AA0612 BOLT-UPSET-WSP |
187AA0612 |
from US $1.11 |
||
|
224
|
224
224B0614 SCREW,6X14 |
224B0614 |
US $42.70 |
||
| replacements | |||||
|
224
|
224
92009-1333 SCREW,6X14 |
92009-1333 |
US $3.02 |
||
|
224
|
224
224AA0614 SCREW,6X14 |
224AA0614 |
from US $3.17 |
||
|
312
|
312
312B0600 NUT-HEX |
312B0600 |
US $0.95 |
||
| replacement | |||||
|
312
|
312
312AA0600 NUT-HEX |
312AA0600 |
from US $0.94 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
|
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
35004A
|
35004A
35004-1072-6W
FENDER-FRONT,L.GREEN
|
35004-1072-6W |
— | ||
|
35022
|
35022
35022064 FENDER-RR |
35022064 |
US $39.04 |
||
|
35023A
|
35023A
35023-1039-6W
FENDER-REAR,L.GREEN
|
35023-1039-6W |
— | ||
|
35034
|
35034
35034-1075 REINFORCE |
35034-1075 |
US $69.19 |
||
|
92001
|
92001
92001-1761 BOLT,6X12 |
92001-1761 |
US $1.91 |
||
| replacement | |||||
|
92001
|
92001
92002-1232
Bolt,6x12
|
92002-1232 |
— | ||
|
92001A
|
92001A
92001-1763 BOLT,W/SP,6X16 |
92001-1763 |
from US $3.01 |
||
|
92002
|
92002
92002-1075 BOLT,6X16 |
92002-1075 |
US $2.30 |
||
| replacement | |||||
|
92002
|
92002
92001-1863 BOLT,6X16 |
92001-1863 |
from US $2.30 |
||
|
92009
|
92009
92009-1281 SCREW,6X14 |
92009-1281 |
from US $2.41 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
|
92027
|
92027
92027-1018 COLLAR,REAR FENDER |
92027-1018 |
from US $3.64 |
||
|
92027A
|
92027A
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
|
92075
|
92075
92075-105 DAMPER RUBBER |
92075-105 |
from US $3.33 |
||
