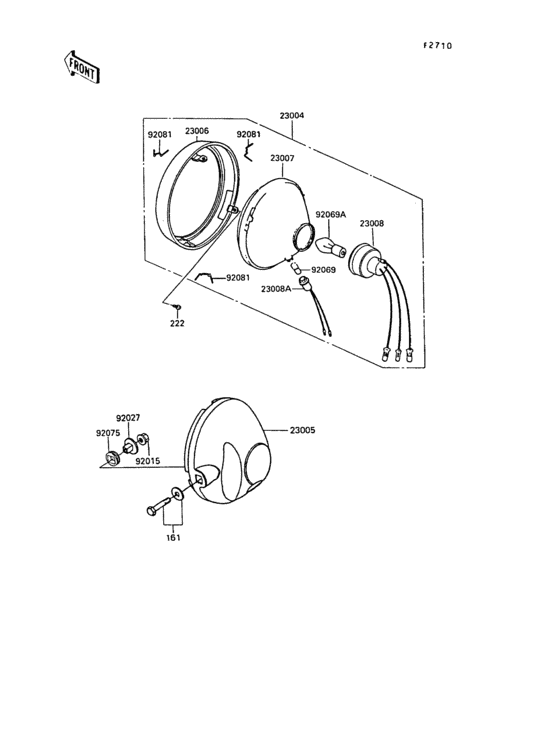

Head lamp Diagram Kawasaki KE100
- Year
- 1991
- Colour
- Lime Green (7F)
- Model code
- KE100-B10
- Sales region
- Europe (General)
- Engine Capacity
- 100
- Model
- KE100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
161
|
161
161N1030
Bolt-fine-wp
|
161N1030 |
— | ||
| replacement | |||||
|
161
|
161
92150-1847
Bolt
|
92150-1847 |
— | ||
|
23004
|
23004
23004046
Lamp unit,head
|
23004046 |
— | ||
| replacements | |||||
|
23004
|
23004
23006050
Rim, head lamp
|
23006050 |
— | ||
|
23004
|
23004
23008042 Socket,parking lamp |
23008042 |
US $8.71 |
||
|
23004
|
23004
23009014 CLAMP,HEAD LAMP LENS |
23009014 |
US $6.77 |
||
|
23004
|
23004
23007051
Lens unit,head lamp
|
23007051 |
— | ||
|
23004
|
23004
23008040
Socket,head lamp
|
23008040 |
— | ||
|
23004
|
23004
92069-041 BULB 6V 4W |
92069-041 |
US $4.77 |
||
|
23004
|
23004
92069-065
Bulb,6v 4w
|
92069-065 |
— | ||
|
23005
|
23005
23005-1003-21
Body,head lamp
|
23005-1003-21 |
— | ||
|
23006
|
23006
23006050
Rim, head lamp
|
23006050 |
— | ||
|
23007
|
23007
23007051
Lens unit,head lamp
|
23007051 |
— | ||
|
23008
|
23008
23008040
Socket,head lamp
|
23008040 |
— | ||
|
23008A
|
23008A
23008042 Socket,parking lamp |
23008042 |
US $8.71 |
||
|
92015
|
92015
92015-1428 NUT,FLANGED,10MM |
92015-1428 |
from US $3.01 |
||
|
92027
|
92027
23052005 COLLAR |
23052005 |
from US $9.01 |
||
|
92069
|
92069
92069-041 BULB 6V 4W |
92069-041 |
US $4.77 |
||
|
92069A
|
92069A
92069-065
Bulb,6v 4w
|
92069-065 |
— | ||
|
92075
|
92075
23066011 DAMPER RUBBER |
23066011 |
US $3.62 |
||
|
92081
|
92081
23009014 CLAMP,HEAD LAMP LENS |
23009014 |
US $6.77 |
||
